SM-120B-C003¶
Specifications transcribed from the supplied documentation for this exact model and suffix.
Start your integration¶
| Your task | Start here | What to check |
|---|---|---|
| Write control software | Software integration | Interface, application layer, read-first bring-up and validation record |
| Design a bracket or joint | Mechanical integration | Drawings, CAD, datum, output shaft and cable clearance |
| Collect engineering files | Resources and status | Available files and outstanding information |
Key specifications¶
| Parameter | Specification |
|---|---|
| --- | --- |
| Input voltage | 24 V |
| Stall torque | 120 kg·cm@24V |
| No-load speed | 0.2 s/60°（50 RPM）@24V |
| Travel / rotation | 360°（0~4095） |
| Control interface | RS-485 |
| Family | SMS |
| Dimensions | 78 × 43 × 65.5 mm |
| Weight | 485 g |
| Gears | Steel gears（gear ratio 232:1） |
| Motor | Brushless motor |
| Communication | Modbus-RTU（RS-485 physical layer），ID 0–253，38400bps ~ 1Mbps |
| Document revision | A/0（Official page captured 2026-10-02） |
Modbus-RTU model
This exact model uses Modbus-RTU over RS-485. Obtain its own register table; SMS_STS addresses, units and control modes do not apply.
Selection note
Stall torque is a short-duration limit, not continuous operating torque. Confirm power, shared ground, interface and mechanical clearance before enabling torque.
Official model specifications¶
FEETECH official product page · Checked 2026-10-02. The complete model on the page is SM-120B-C003.
| Parameter | Manufacturer specification |
|---|---|
| Model | SM-120B-C003 |
| Storage Temperature Range | -30℃～80℃ |
| Operating Temperature Range | -20℃～80℃ |
| Size | A：78mm B：43mm C：65.5mm |
| Weight | 485g |
| Gear type | Steel Gear ( Gear Ratio 232:1 ) |
| Limit angle | NO limiter |
| Bearing | 2 Ball bearings |
| Horn gear spline | One character (OD10mm) |
| Horn type | steel |
| Case | Aluminium ( 7075) |
| Connector wire | 300mm ±5 mm |
| Motor | Brushless motor |
| Operating Voltage Range | 24V |
| No load speed | 0.2sec/ 60degree 50RPM@24V |
| Runnig current(at no load) | 200 mA@24V |
| Peak stall torque | 120kg.cm@24V |
| Rated torque | 40kg.cm@24V |
| Stall current | 4000mA@24V |
| Rated Load | 32kg. cm≤ |
| Rated current | 1000mm≤ |
| KM | 30kg. cm/A |
| Terminal resistance | 2.8Ω |
| Command signal | Bus Packet Communication RS485 |
| Protocol Type | Modbus-RTU |
| ID | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running degree | 360° (when 0~4095) |
| Feedback | Load,Position,Speed,Input Voltage,Current,Temperature |
| Position Sensor Resolution | 12Bits Magnetic Coding(360° /4096 ） |
Attachment checks: Different model PDF: SM120BL specs-20191030.pdf
Other files linked by the manufacturer (model applicability unconfirmed):
Resources and document status¶
Local attachments are included in the model package; PDF specifications link to the manufacturer and are not bundled offline. Missing resources are not yet supplied; family guides do not verify model-specific settings.
| Resource | Status / file | Revision |
|---|---|---|
| Model datasheet | Not supplied | — |
| Connector and pinout | Not supplied | — |
| Model memory table / firmware notes | Not supplied | — |

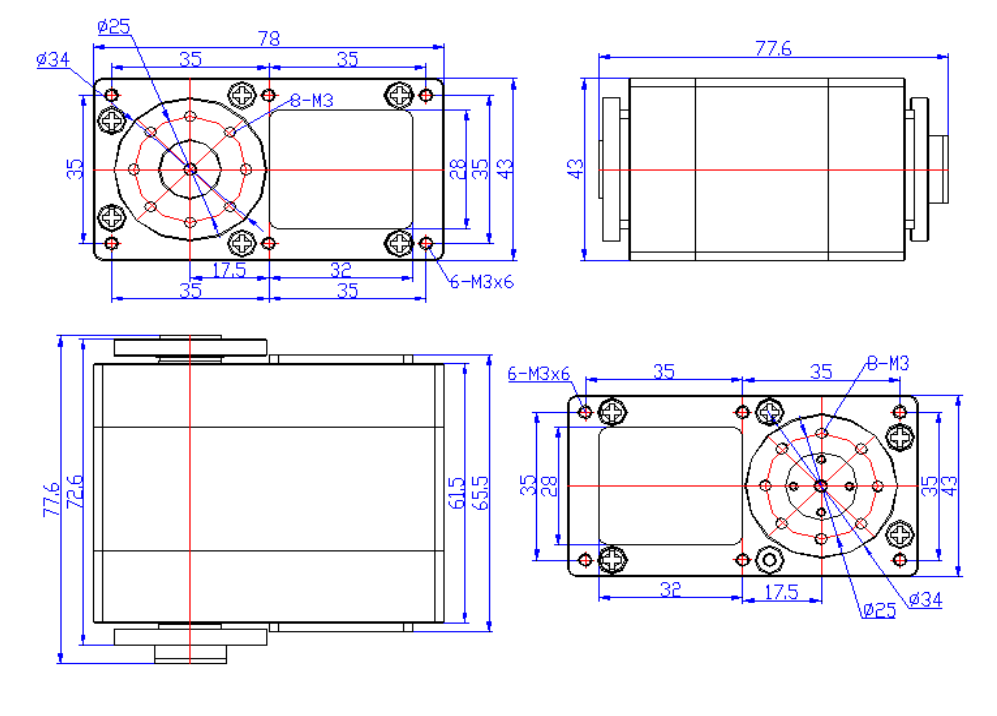

| 2D mounting drawing | drawing.webp | — |
