HL series specifications

17 models. Compare primary specifications and open each model for integration details.

Product selector

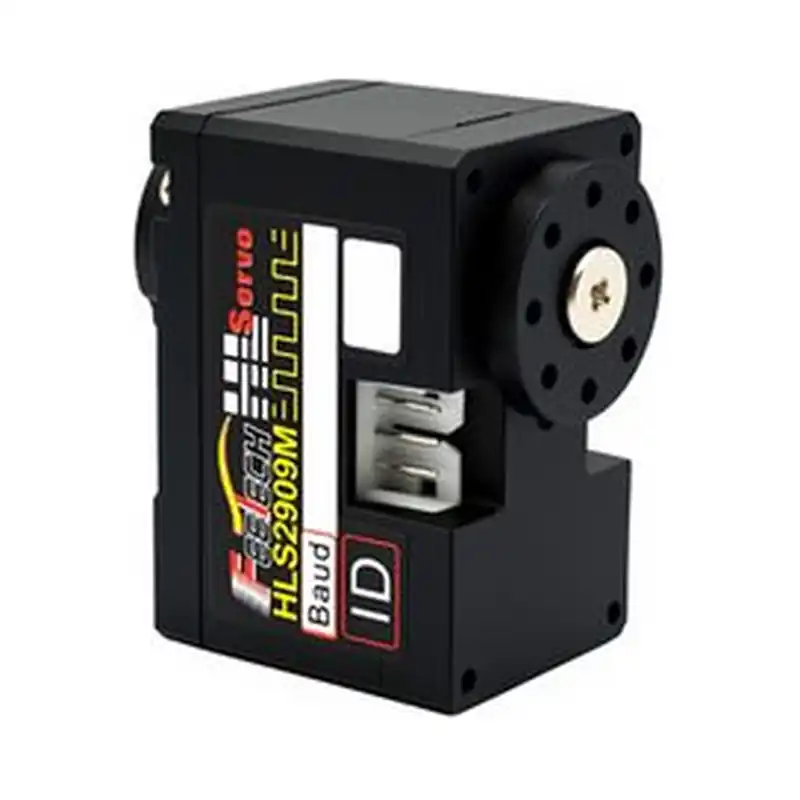

HL-2909-C001

HLSTTL

Input voltage

9–14 V

Stall torque

8.9 kg·cm@12V

No-load speed

77 rpm@12 V

Model page

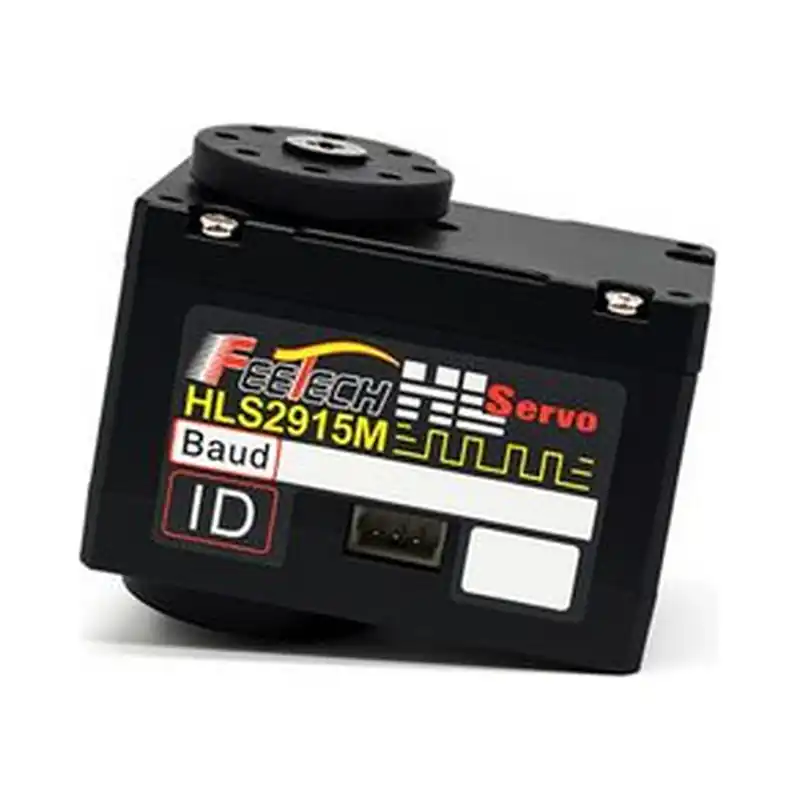

HL-2915-C001

HLSTTL

Input voltage

9–12.6 V

Stall torque

14 kg·cm@12V

No-load speed

110 rpm@12V

Model page

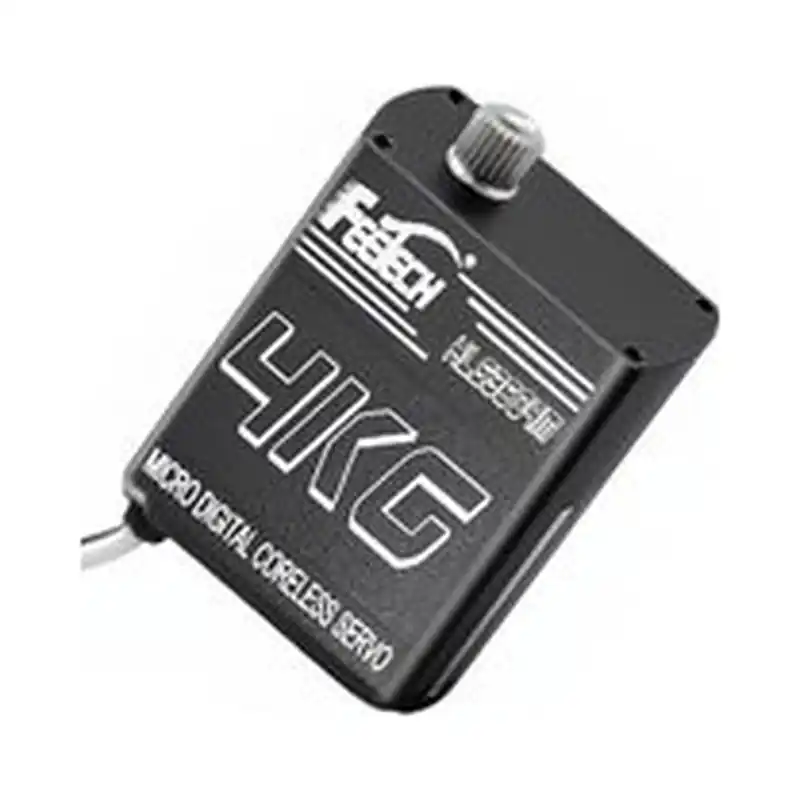

HL-3604-C001

HLSTTL

Input voltage

6 V

Stall torque

4 kg·cm@6V

No-load speed

180 rpm@6V

Model page

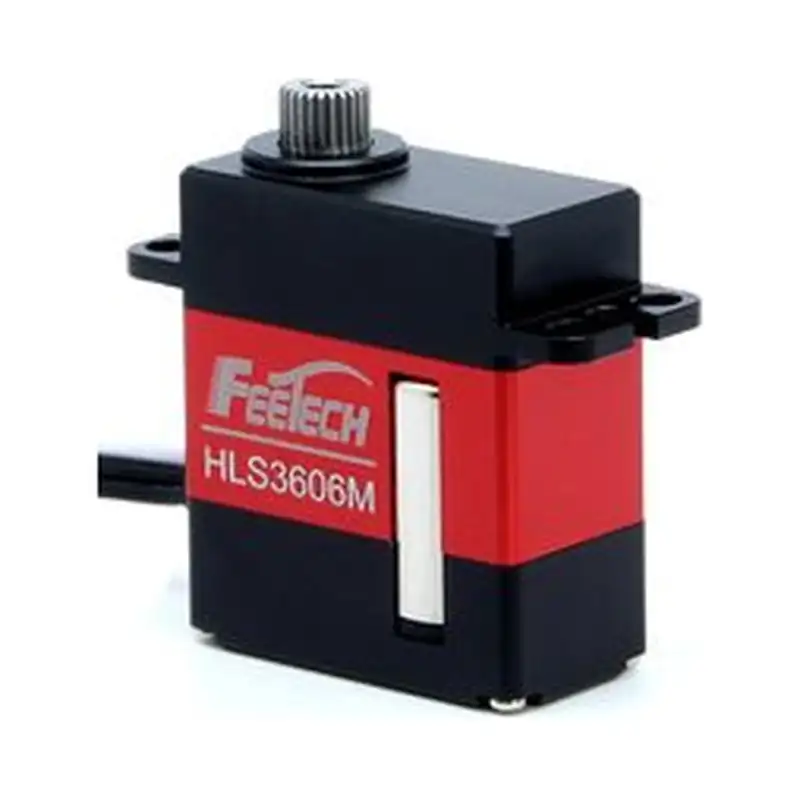

HL-3606-C001

HLSTTL

Input voltage

6 V

Stall torque

6 kg·cm@6V

No-load speed

111 rpm@6V

Model page

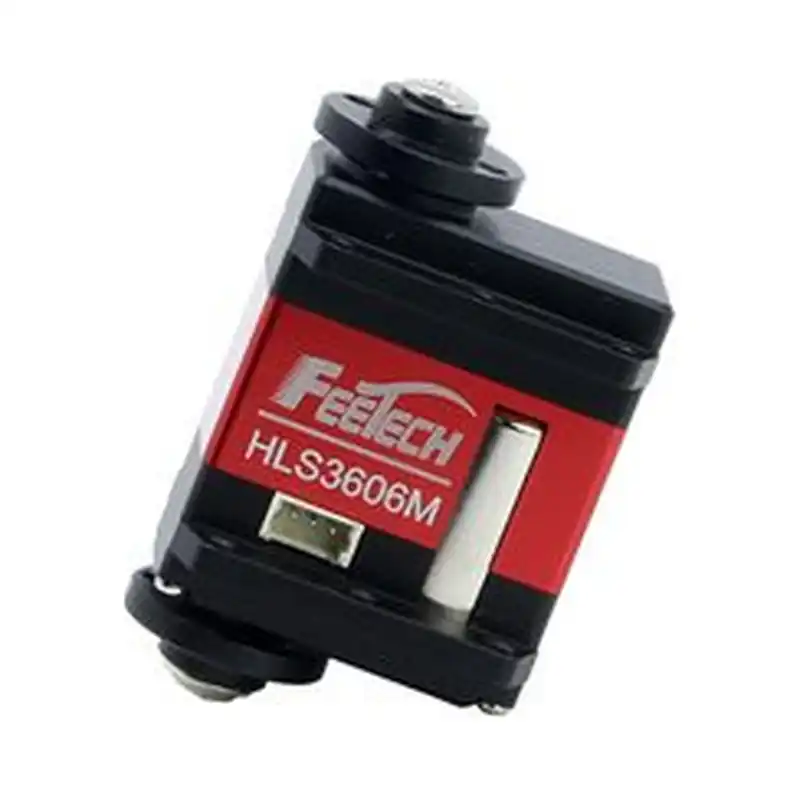

HL-3606-C002

HLSTTL

Input voltage

6 V

Stall torque

6 kg·cm@6V

No-load speed

111 rpm@6V

Model page

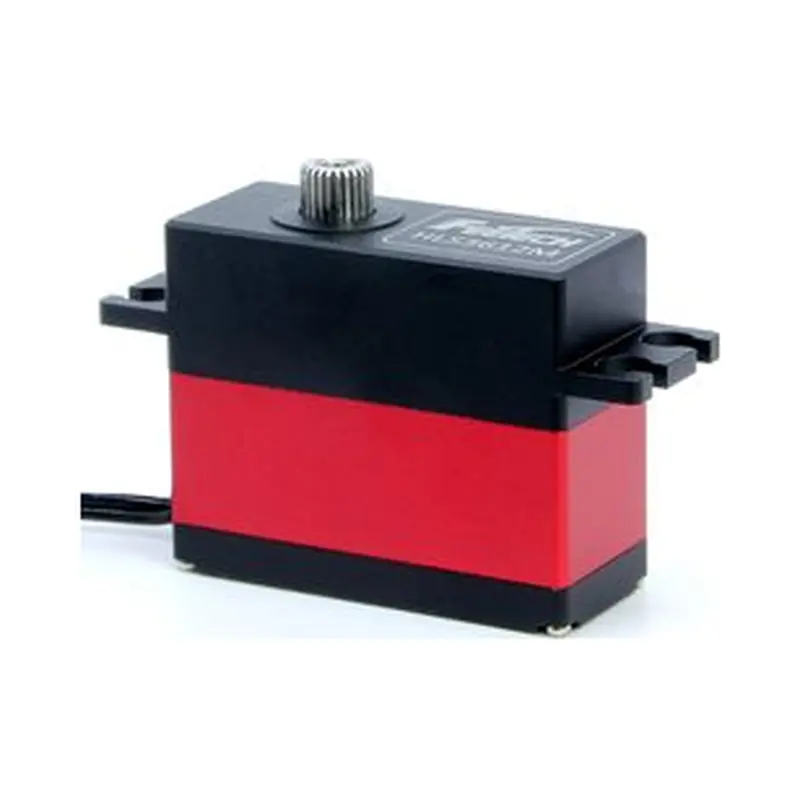

HL-3612-C001

HLSTTL

Input voltage

6 V

Stall torque

12 kg·cm@6V

No-load speed

68 rpm@7.4V

Model page

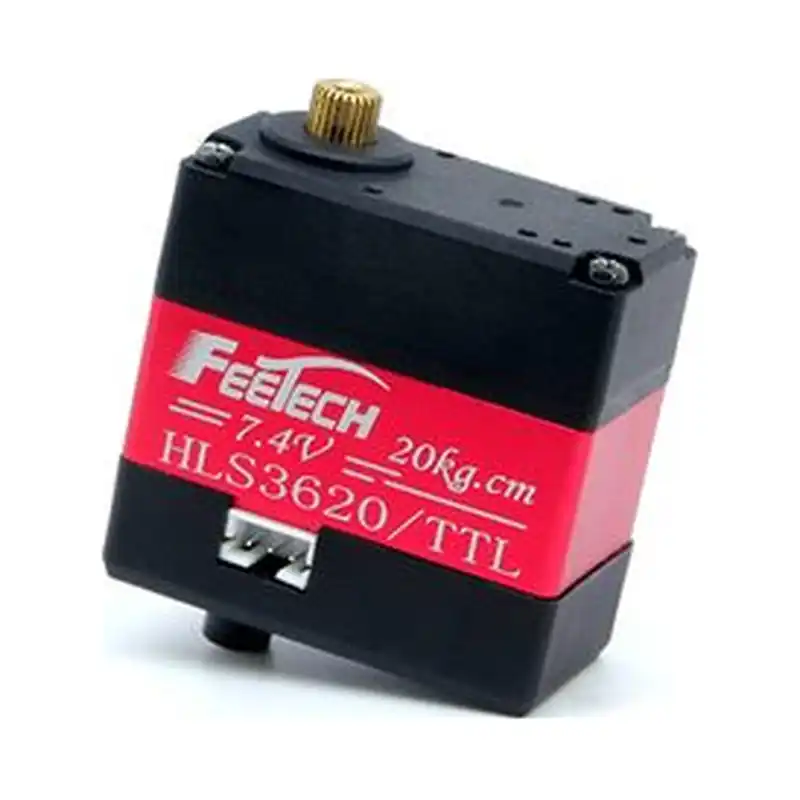

HL-3620-C001

HLSTTL

Input voltage

7.4 V

Stall torque

20 kg·cm@7.4V

No-load speed

74 rpm@8.4V

Model page

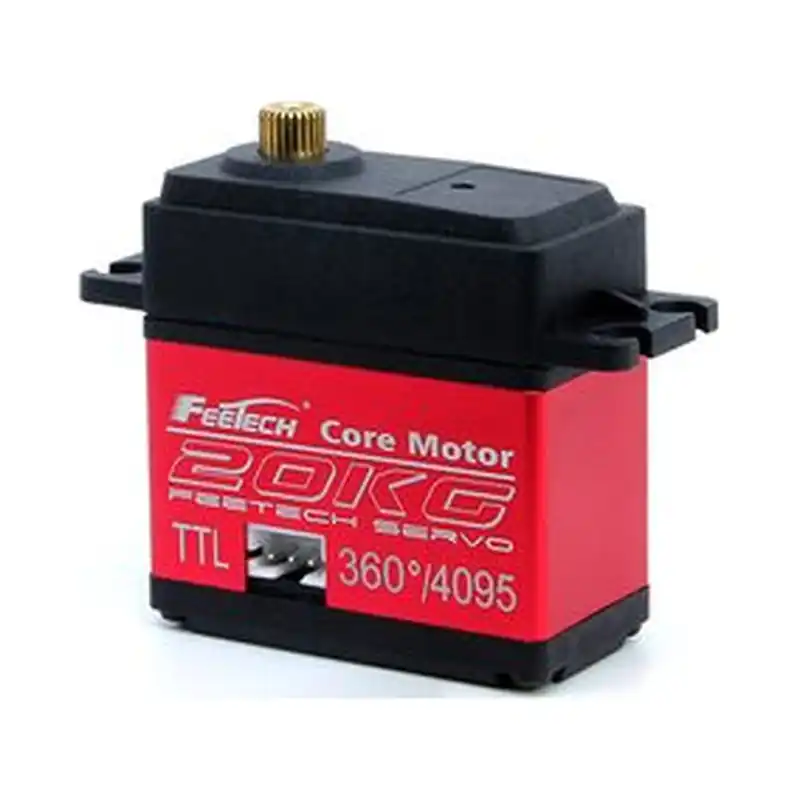

HL-3620-C002

HLSTTL

Input voltage

7.4 V

Stall torque

20 kg·cm@7.4V

No-load speed

74.07 rpm@8.4V

Model page

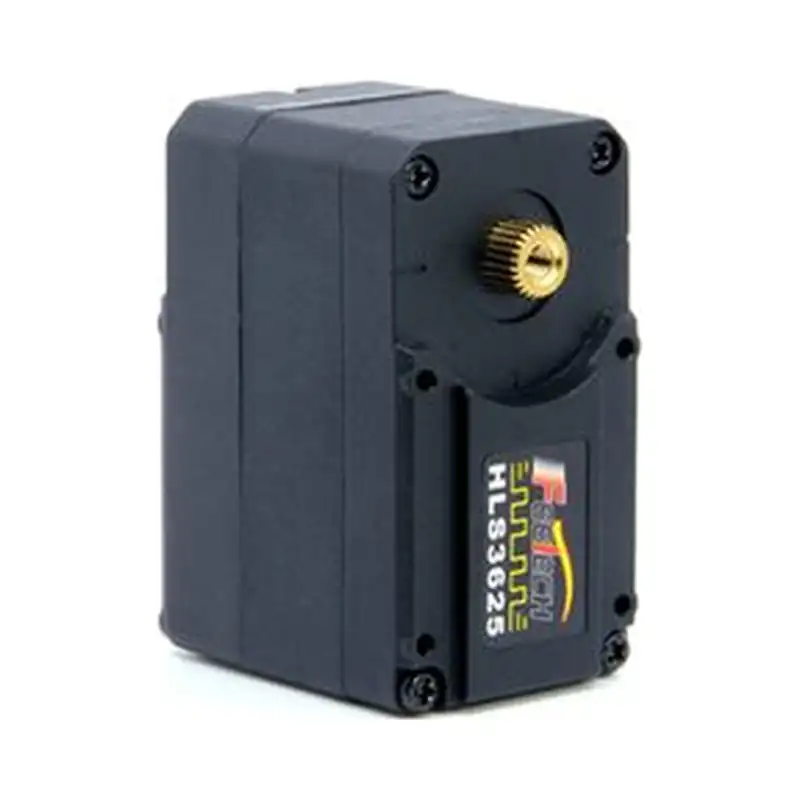

HL-3625-C001

HLSTTL

Input voltage

7.4 V

Stall torque

25 kg·cm@7.4V

No-load speed

52 rpm@7.4V

Model page

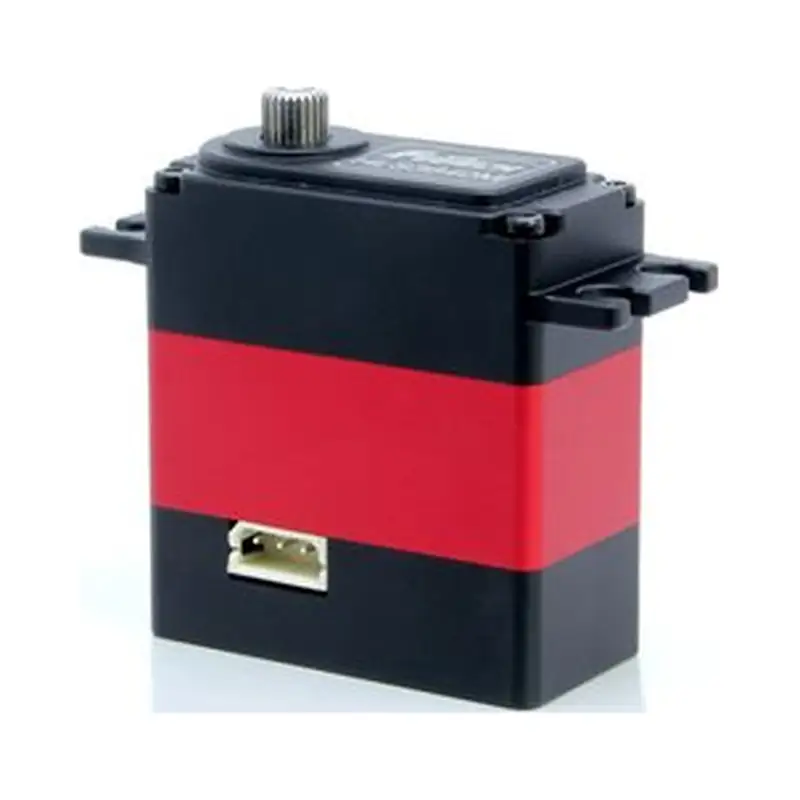

HL-3640-C001

HLSTTL

Input voltage

7.4 V

Stall torque

40 kg·cm@7.4V

No-load speed

45 rpm@7.4V

Model page

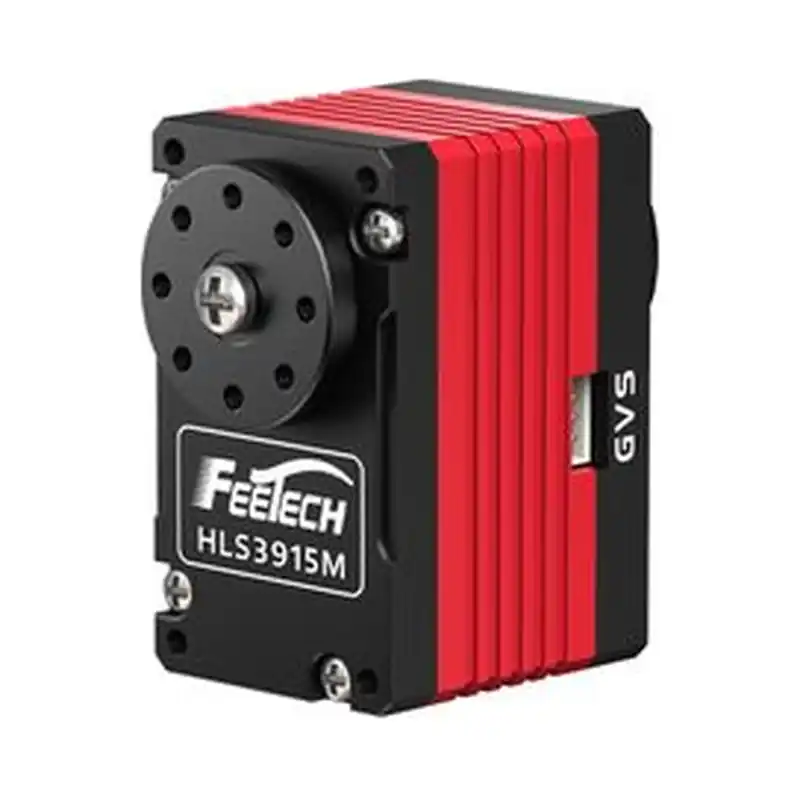

HL-3915-C001

HLSTTL

Input voltage

9–12.6 V

Stall torque

14 kg·cm@12V

No-load speed

100 rpm@12V

Model page

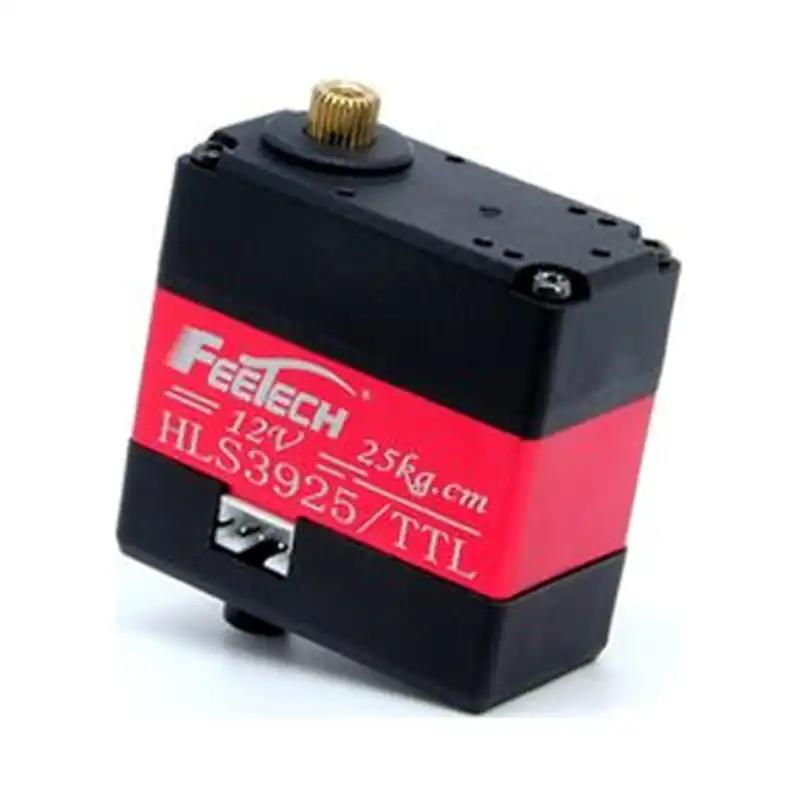

HL-3925-C001

HLSTTL

Input voltage

9–12.6 V

Stall torque

25 kg·cm@12V

No-load speed

55 rpm@12V

Model page

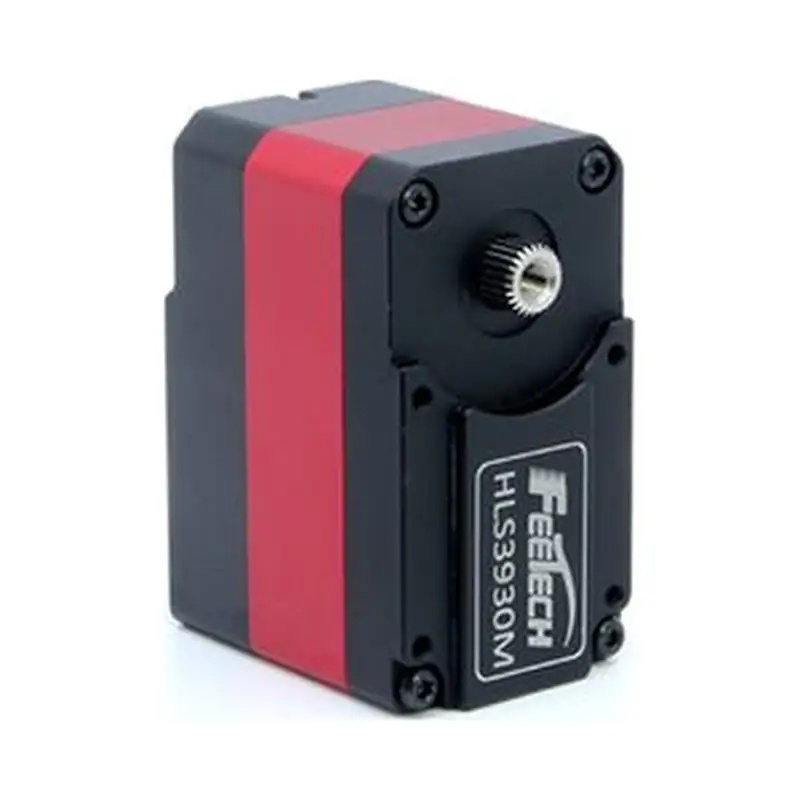

HL-3930-C001

HLSTTL

Input voltage

9–12.6 V

Stall torque

35 kg·cm@12V

No-load speed

45 rpm@12V

Model page

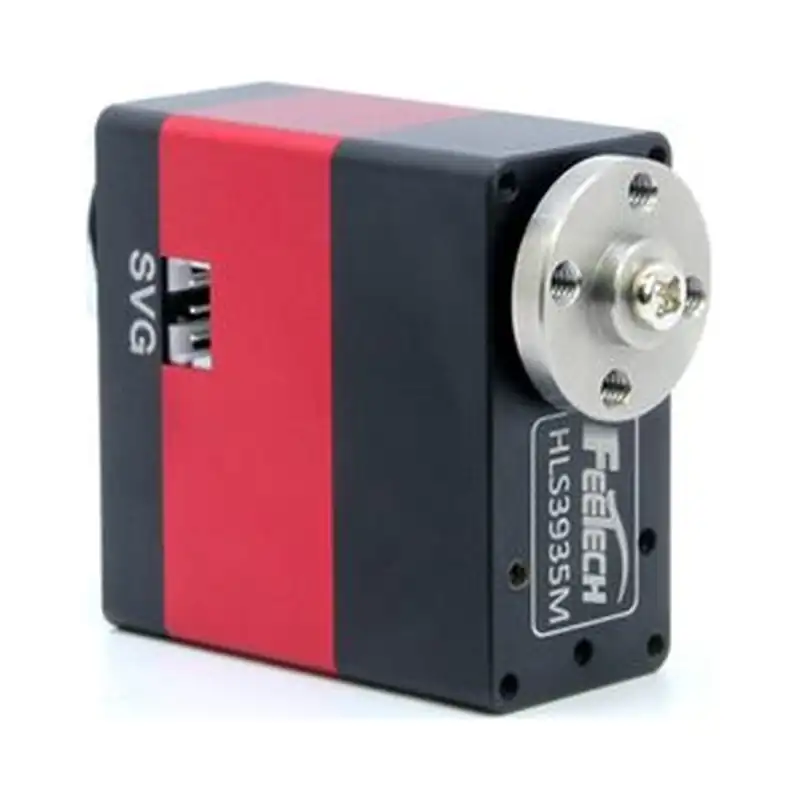

HL-3935-C001

HLSTTL

Input voltage

9V-12.6V

Stall torque

35kg·cm@12V

No-load speed

85 rpm@12V

Model page

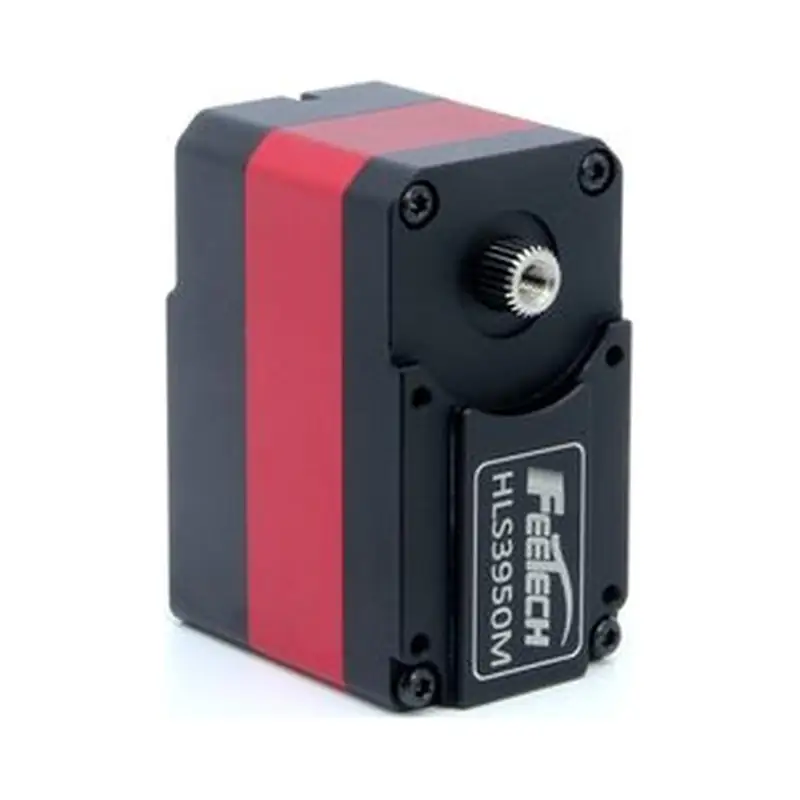

HL-3950-C001

HLSTTL

Input voltage

9–12.6 V

Stall torque

50 kg·cm@12V

No-load speed

75 rpm@12 V

Model page

HL-3955-C001

HLSTTL

Input voltage

9V-12.6V

Stall torque

55kg·cm@12V

No-load speed

55 rpm@12V

Model page

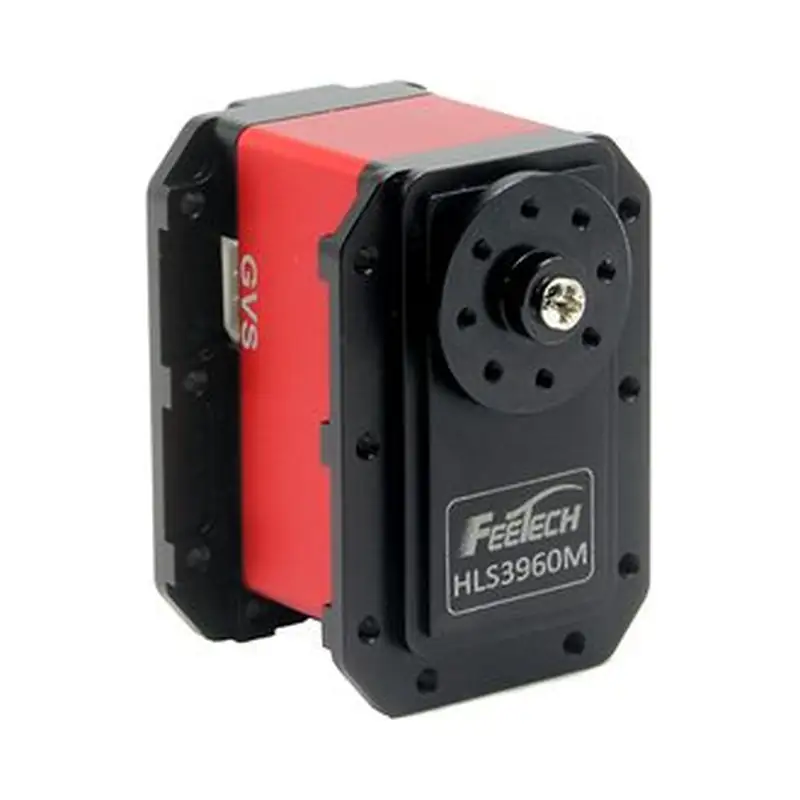

HL-3960-C001

HLSTTL

Input voltage

9–12.6 V

Stall torque

60 kg·cm@12V

No-load speed

60 rpm@12V

Model page
