SC series specifications¶
18 models. Compare primary specifications and open each model for integration details.

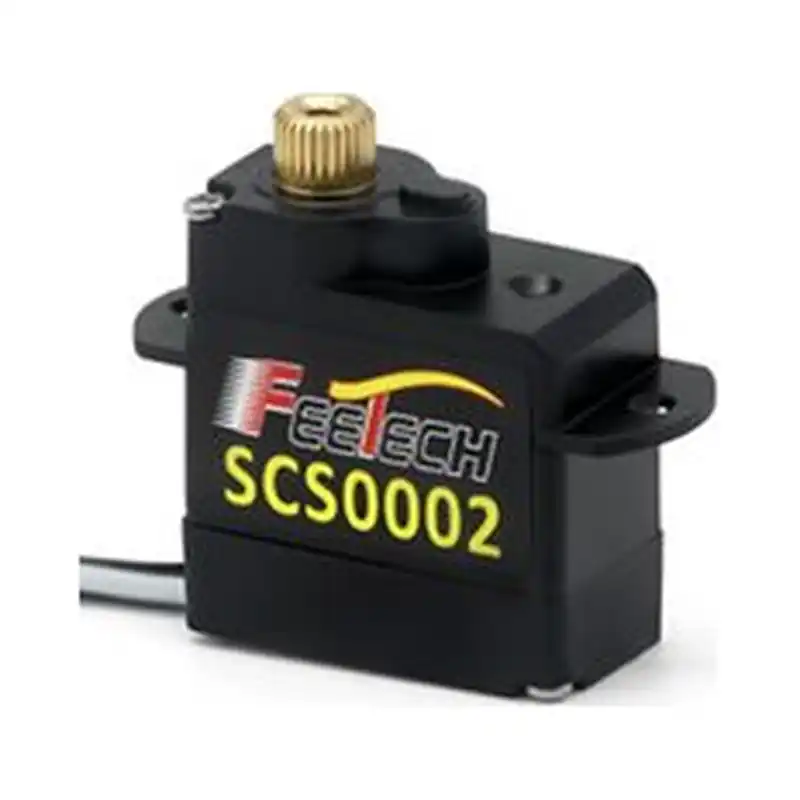

SC-0002-C001
SCSTTL
- Input voltage
- 6 V
- Stall torque
- 0.7kg·cm@6V
- No-load speed
- 200 rpm@6V

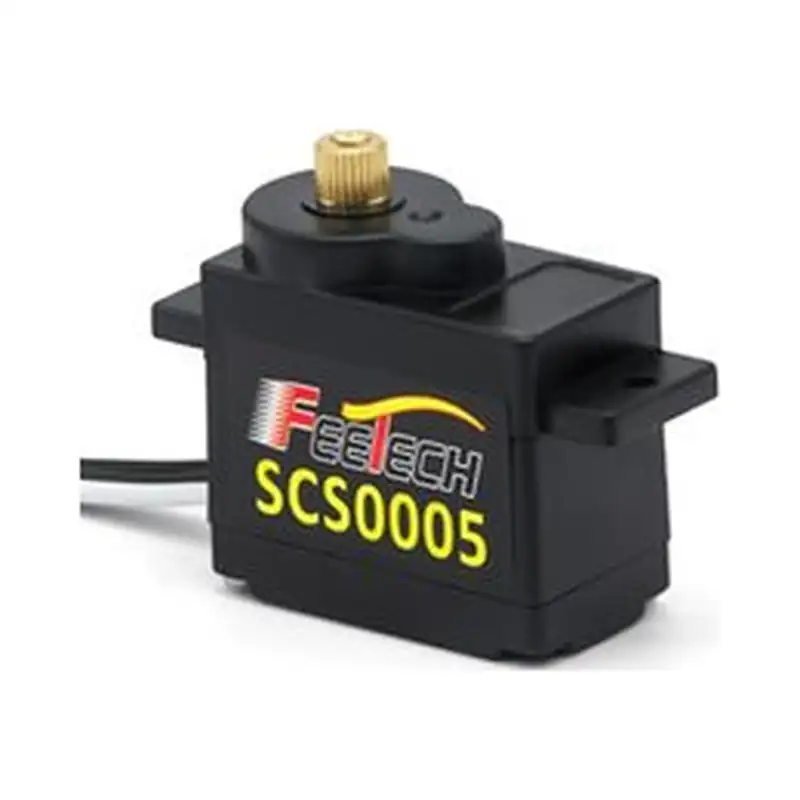

SC-0005-C001
SCSTTL
- Input voltage
- 6 V
- Stall torque
- 1.8kg·cm@6V
- No-load speed
- 170 rpm@6V

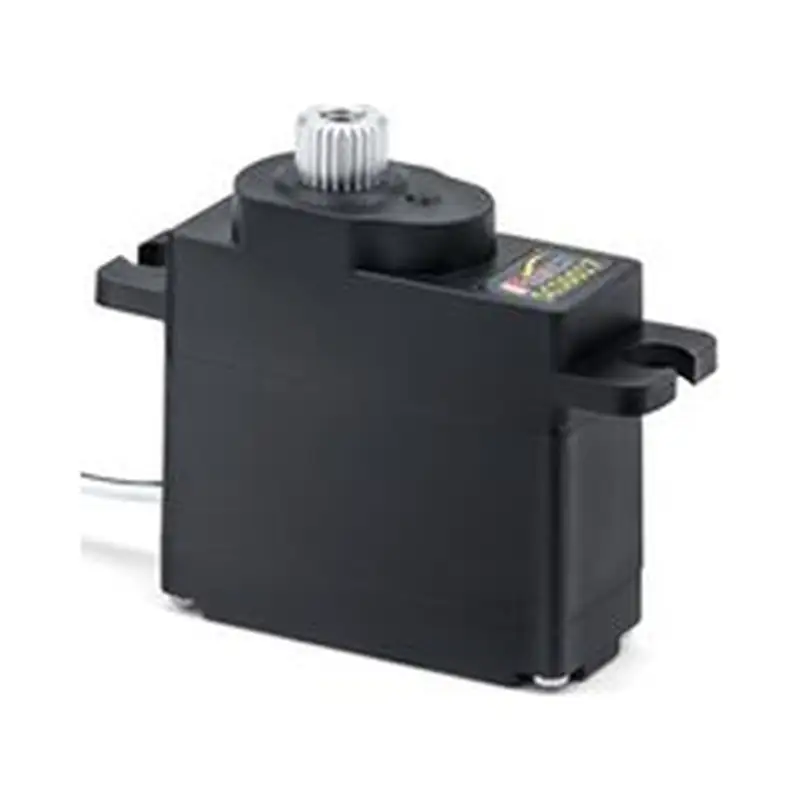

SC-0017-C001
SCSTTL
- Input voltage
- 6 V
- Stall torque
- 5.5 kg·cm@6V
- No-load speed
- 95 rpm@7.4V

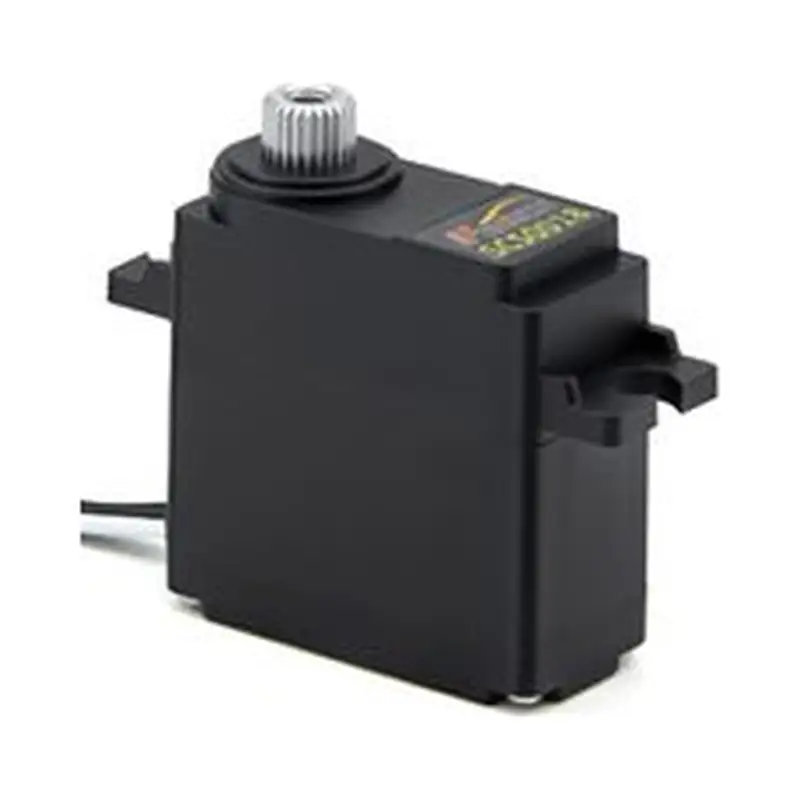

SC-0018-C001
SCSTTL
- Input voltage
- 7.4 V
- Stall torque
- 7.5 kg·cm@7.4V
- No-load speed
- 70 rpm@7.4V

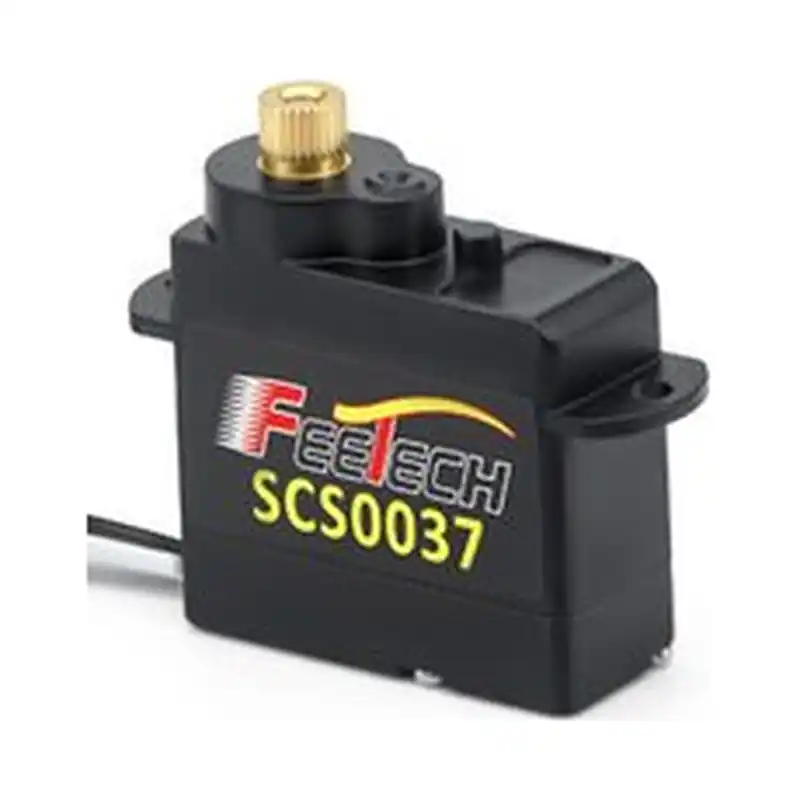

SC-0037-C001
SCSTTL
- Input voltage
- 6 V
- Stall torque
- 1.8kg·cm@6V
- No-load speed
- 185 rpm@6V

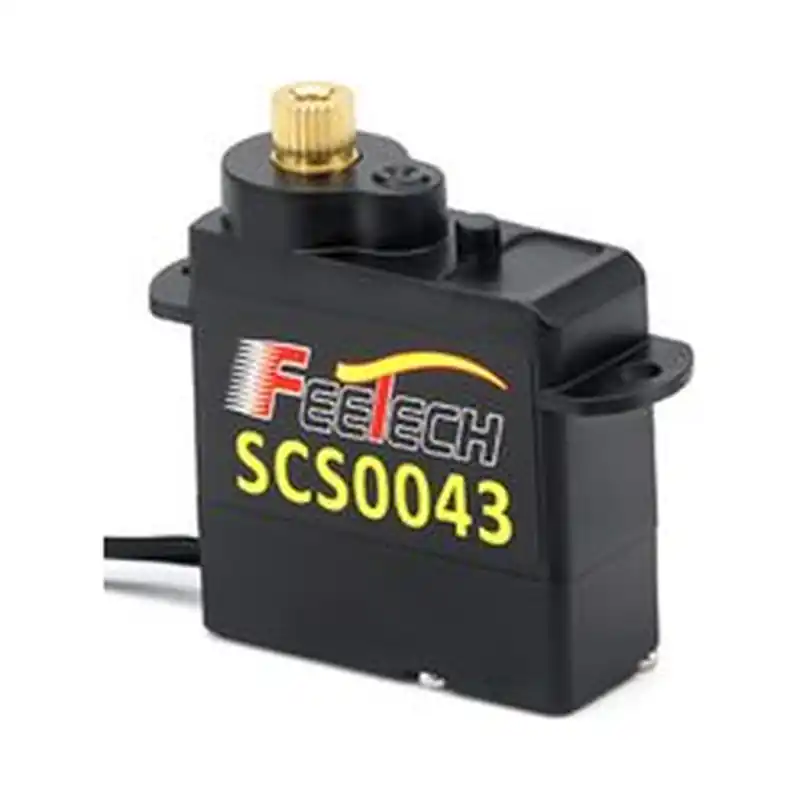

SC-0043-C001
SCSTTL
- Input voltage
- 6 V
- Stall torque
- 2.2kg·cm@6V
- No-load speed
- 160 rpm@6V

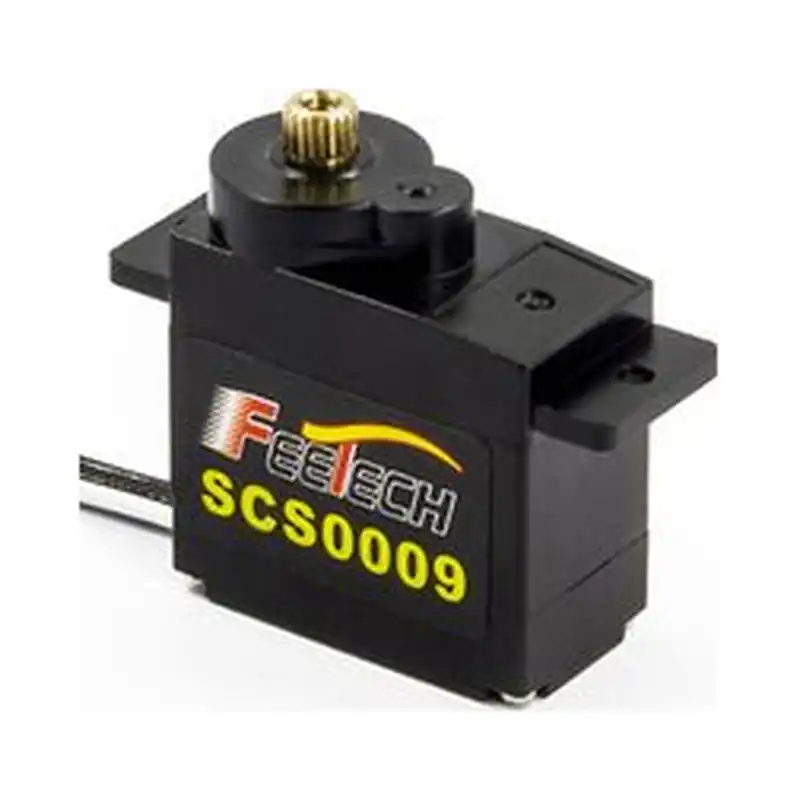

SC-0090-C001
SCSTTL
- Input voltage
- 6 V
- Stall torque
- 2.3 kg·cm@6V
- No-load speed
- 100 rpm@6V

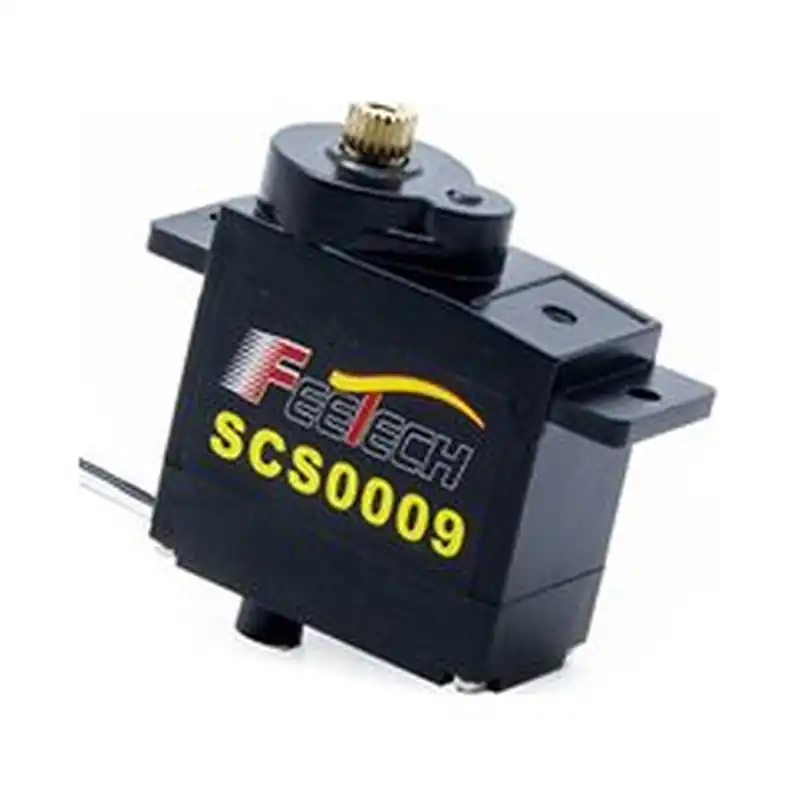

SC-0090-C013
SCSTTL
- Input voltage
- 6 V
- Stall torque
- 2.3 kg·cm@6V
- No-load speed
- 100 rpm@6V

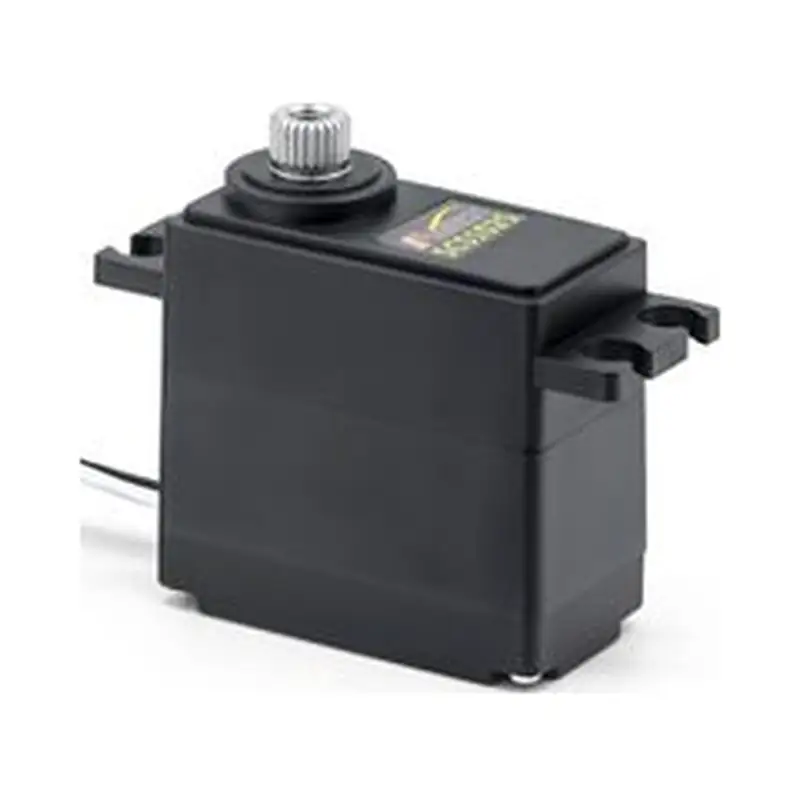

SC-1025-C001
SCSTTL
- Input voltage
- 7.4 V
- Stall torque
- 10.5 kg·cm@7.4V
- No-load speed
- 70 rpm@7.4V

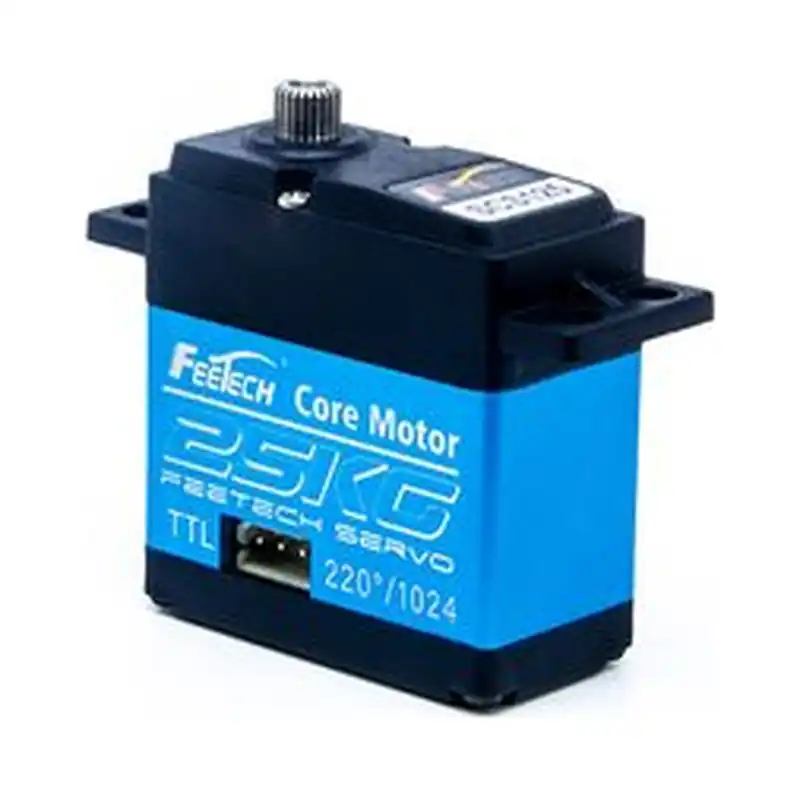

SC-1250-C001
SCSTTL
- Input voltage
- 7.4 V
- Stall torque
- 25 kg·cm@7.4V
- No-load speed
- 66.23 rpm@7.4V

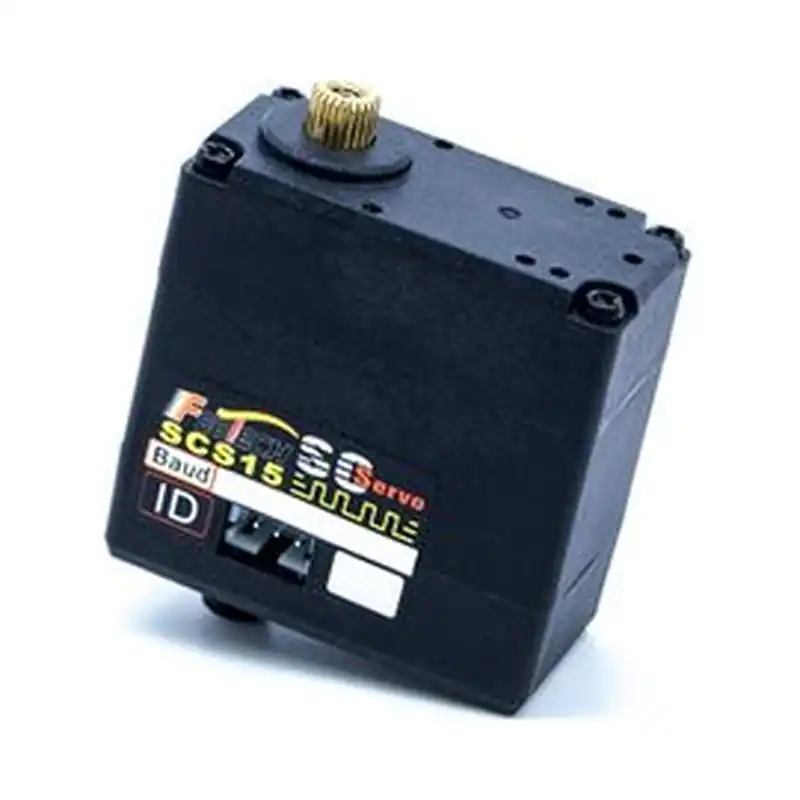

SC-1500-C022
SCSTTL
- Input voltage
- 7.4 V
- Stall torque
- 15 kg·cm@7.4V
- No-load speed
- 64.1 rpm@7.4V

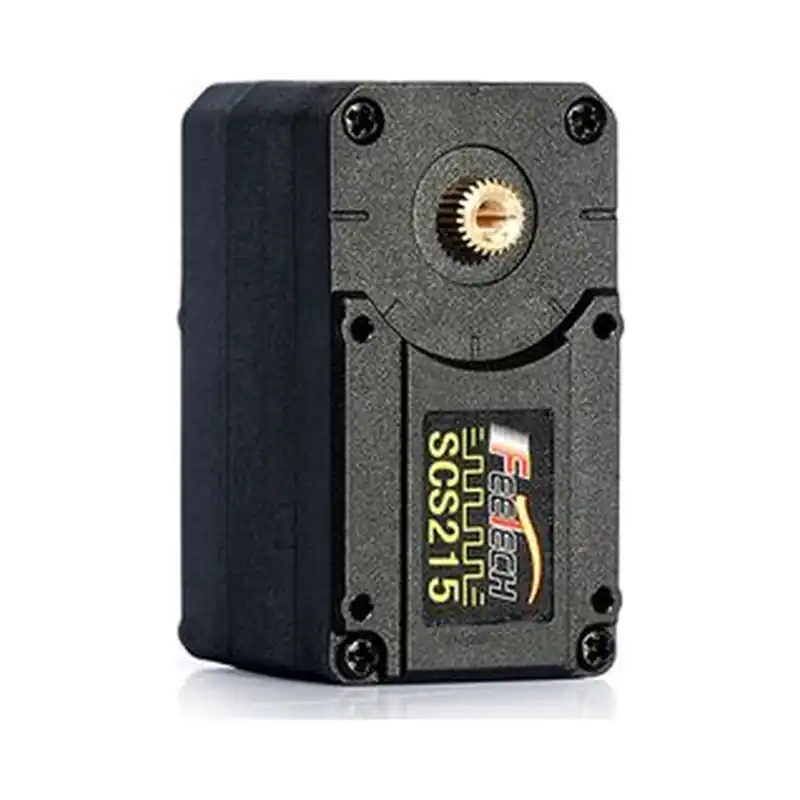

SC-2150-C001
SCSTTL
- Input voltage
- 7.4 V
- Stall torque
- 19 kg·cm@7.4V
- No-load speed
- 52.08 rpm@7.4V

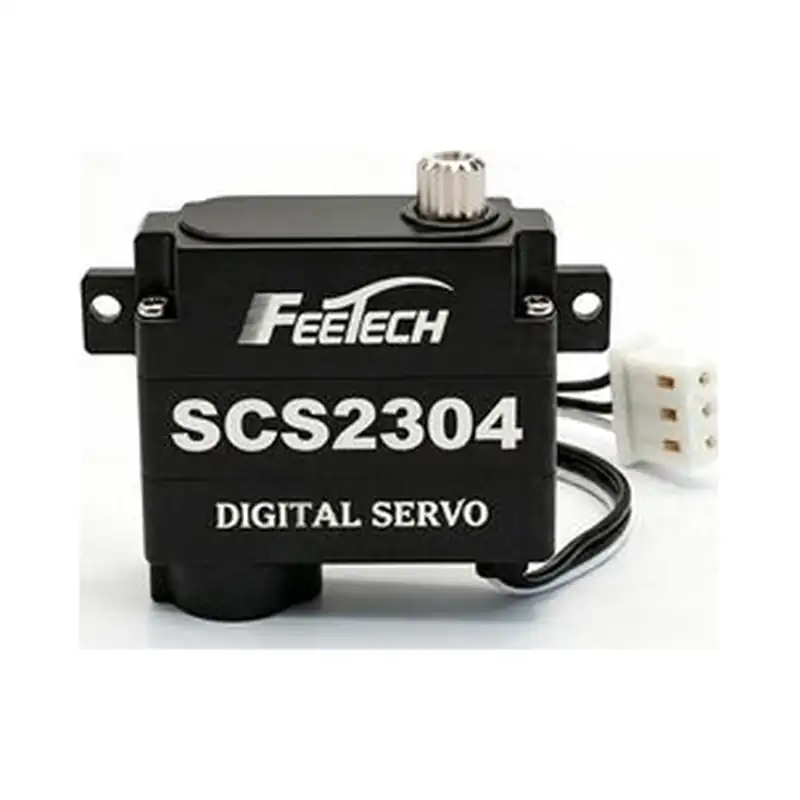

SC-2304-C001
SCSTTL
- Input voltage
- 4.8–7.4 V
- Stall torque
- 3.2 kg·cm@6V
- No-load speed
- 129 rpm@6 V

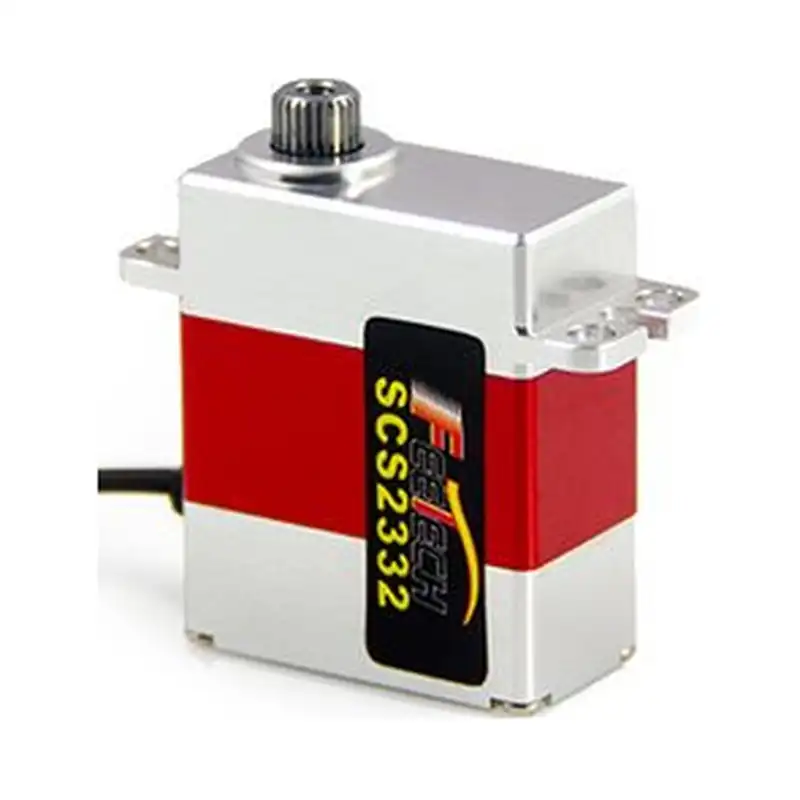

SC-2332-C001
SCSTTL
- Input voltage
- 6 V
- Stall torque
- 4.5 kg·cm@6V
- No-load speed
- 111.11 rpm@6V

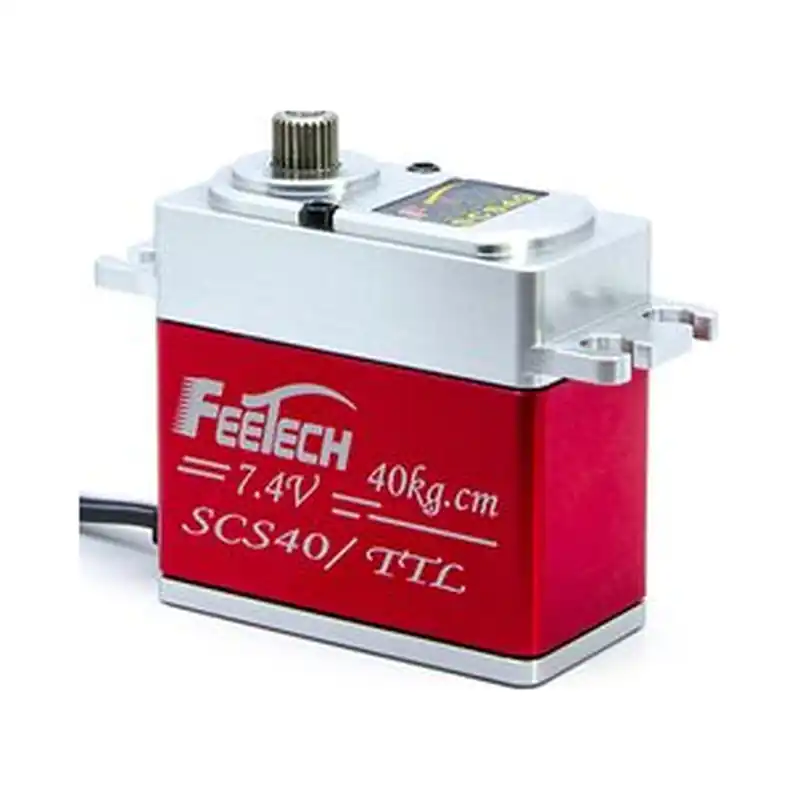

SC-4000-C001
SCSTTL
- Input voltage
- 8.4 V
- Stall torque
- 40 kg·cm@8.4V
- No-load speed
- 83 rpm@8.4V

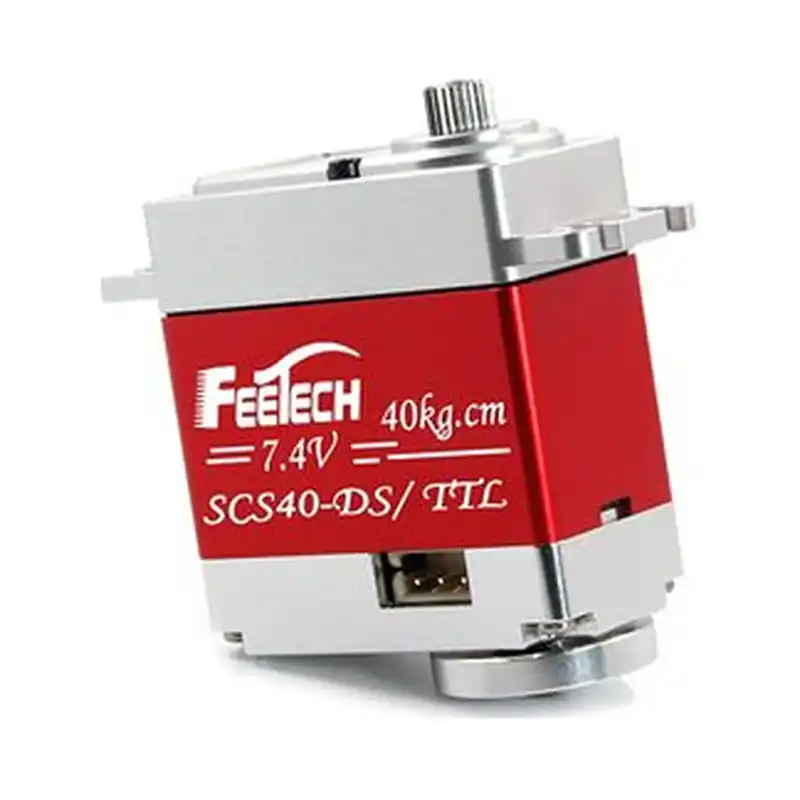

SC-4000-C003
SCSTTL
- Input voltage
- 8.4 V
- Stall torque
- 40 kg·cm@8.4V
- No-load speed
- 83 rpm@8.4V

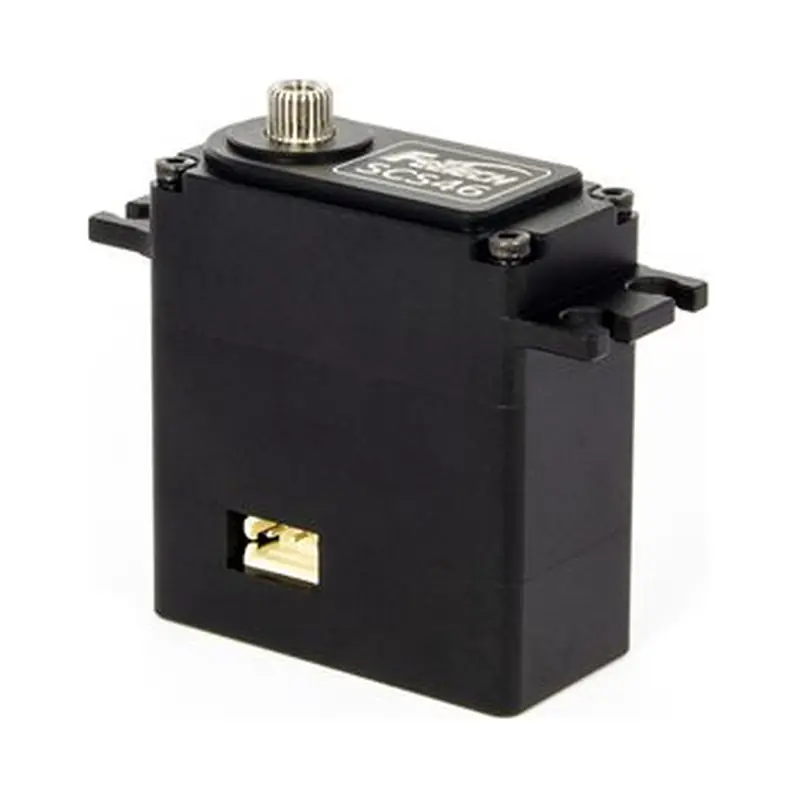

SC-4600-C001
SCSTTL
- Input voltage
- 7.4 V
- Stall torque
- 40 kg·cm@7.4V
- No-load speed
- 45.45 rpm@7.4V

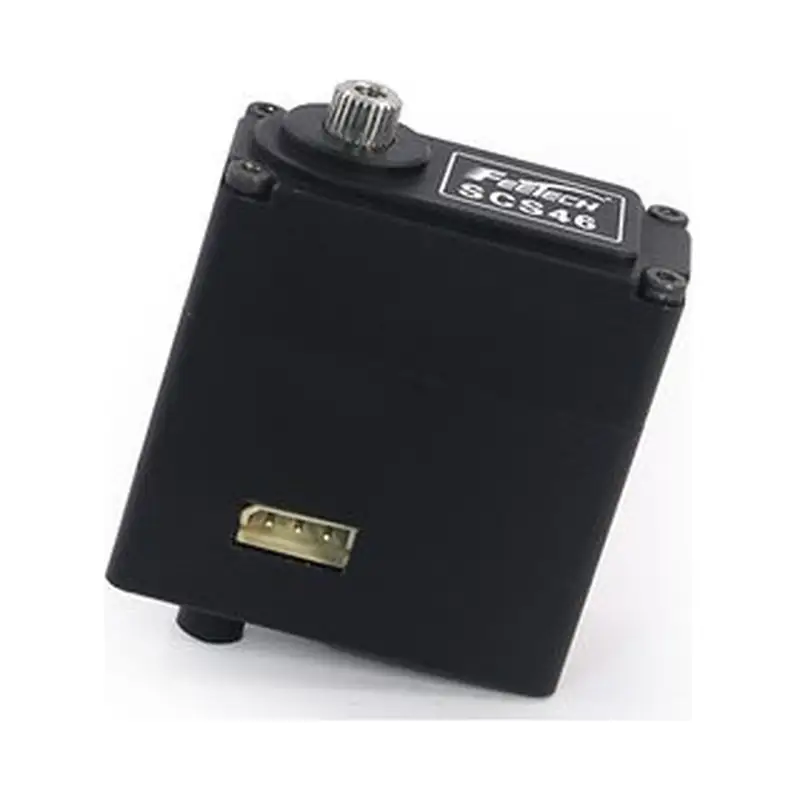

SC-4600-C005
SCSTTL
- Input voltage
- 7.4 V
- Stall torque
- 40 kg·cm@7.4V
- No-load speed
- 47 rpm@7.4V
