SM series specifications

27 models. Compare primary specifications and open each model for integration details.

Product selector

SM-1000-C001

SMSRS-485

Input voltage

12 V

Stall torque

120 kg·cm@12V

No-load speed

40 rpm

Model page

SM-105B-C001

SMSRS-485

Input voltage

9–12.6 V

Stall torque

150 kg·cm@12V

No-load speed

60 rpm

Model page

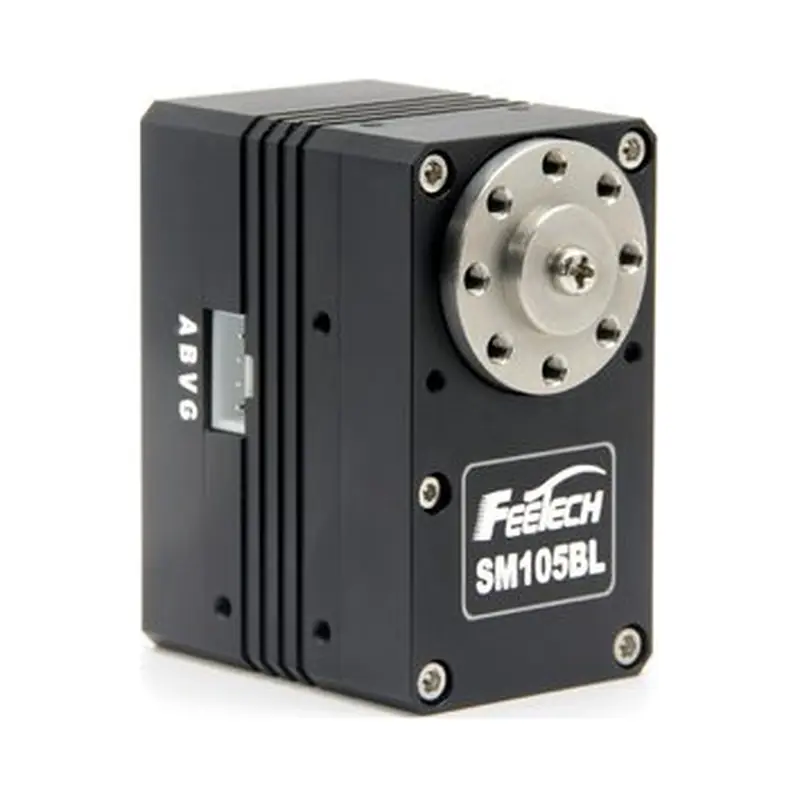

SM-105B-C002

SMSRS-485

Input voltage

9–24 V

Stall torque

150 kg·cm

No-load speed

60 rpm

Model page

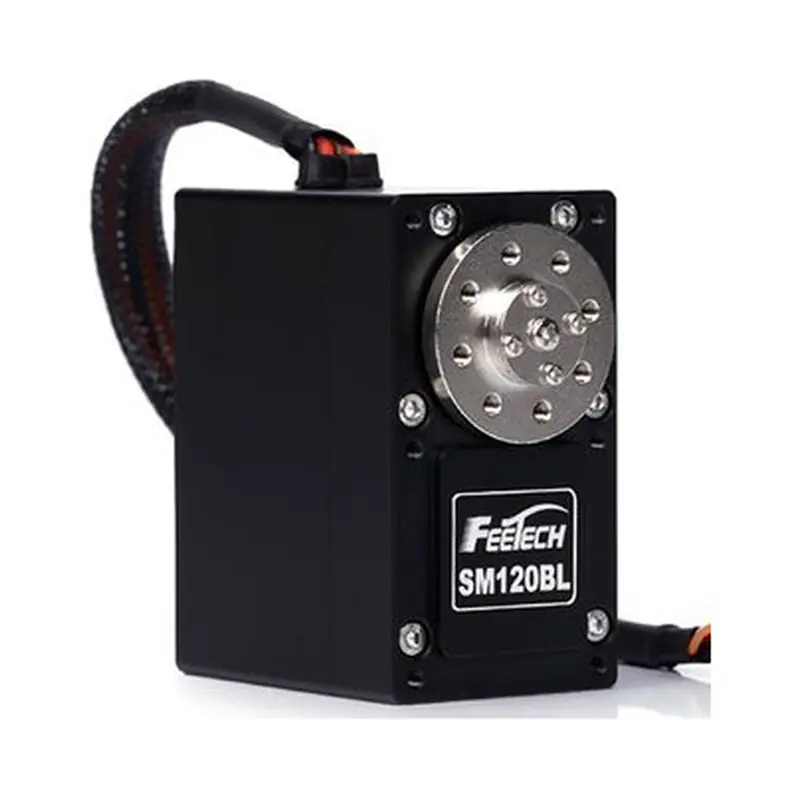

SM-120B-C001

SMSRS-485

Input voltage

18–25.2 V

Stall torque

120 kg·cm@24V

No-load speed

50 rpm@24V

Model page

SM-120B-C003

SMSRS-485

Input voltage

24 V

Stall torque

120 kg·cm@24V

No-load speed

50 rpm@24 V

Model page

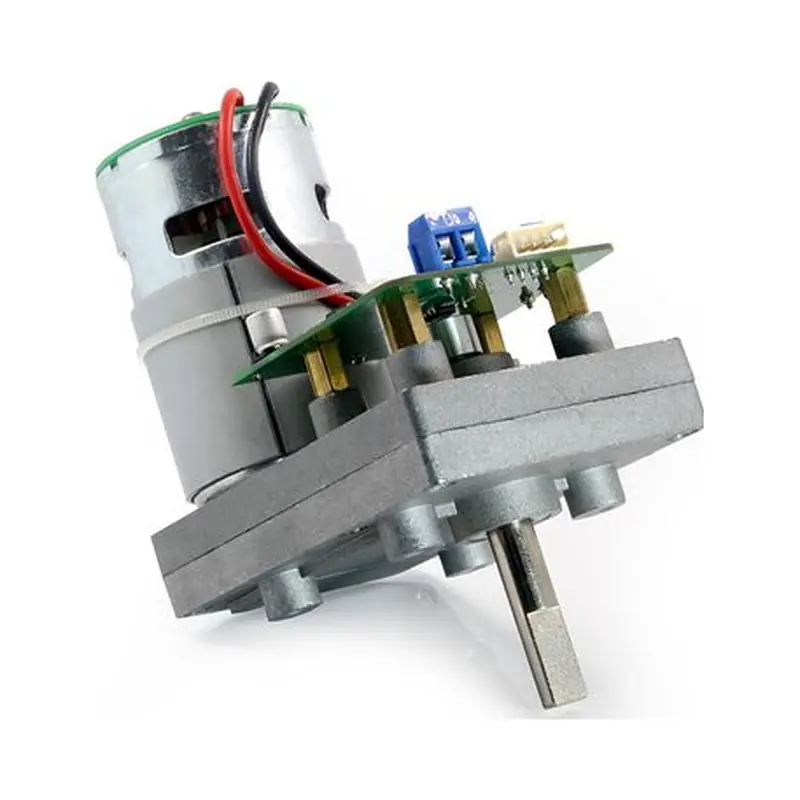

SM-1500-C001

SMSRS-485

Input voltage

12 V

Stall torque

180 kg·cm@12V

No-load speed

15 rpm

Model page

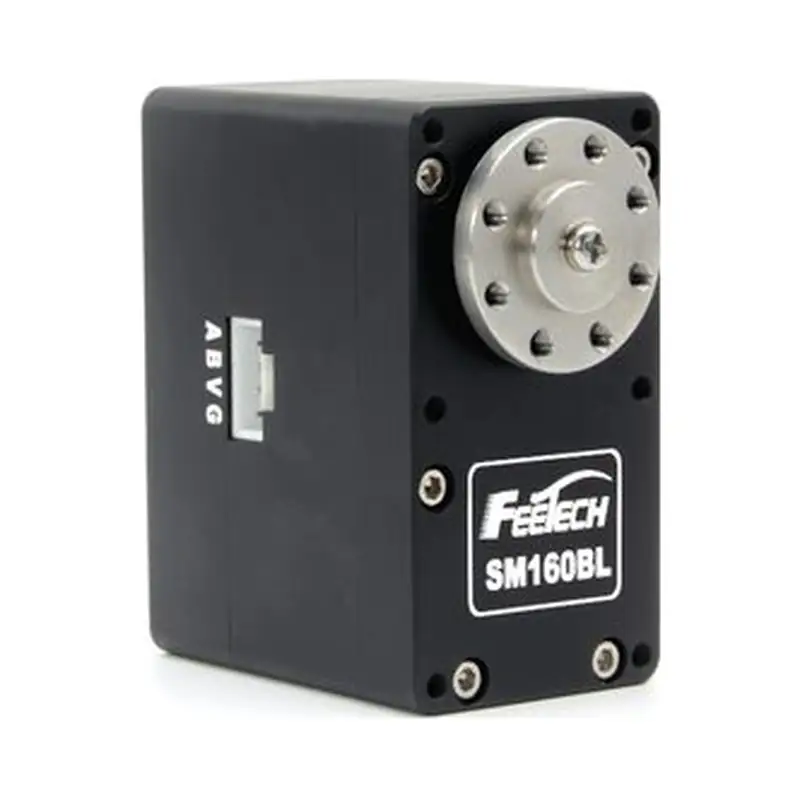

SM-160B-C001

SMSRS-485

Input voltage

18–25.2 V

Stall torque

160 kg·cm@24V

No-load speed

55.25 rpm@24V

Model page

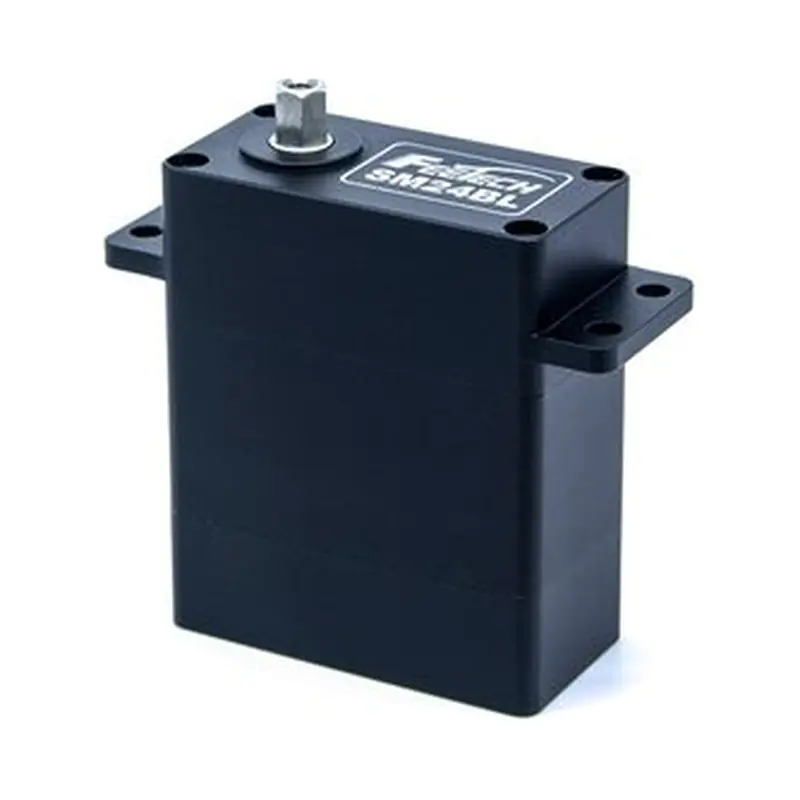

SM-24BL-C001

SMSRS-485

Input voltage

18–25.2 V

Stall torque

24 kg·cm@24V

No-load speed

120 rpm@24V

Model page

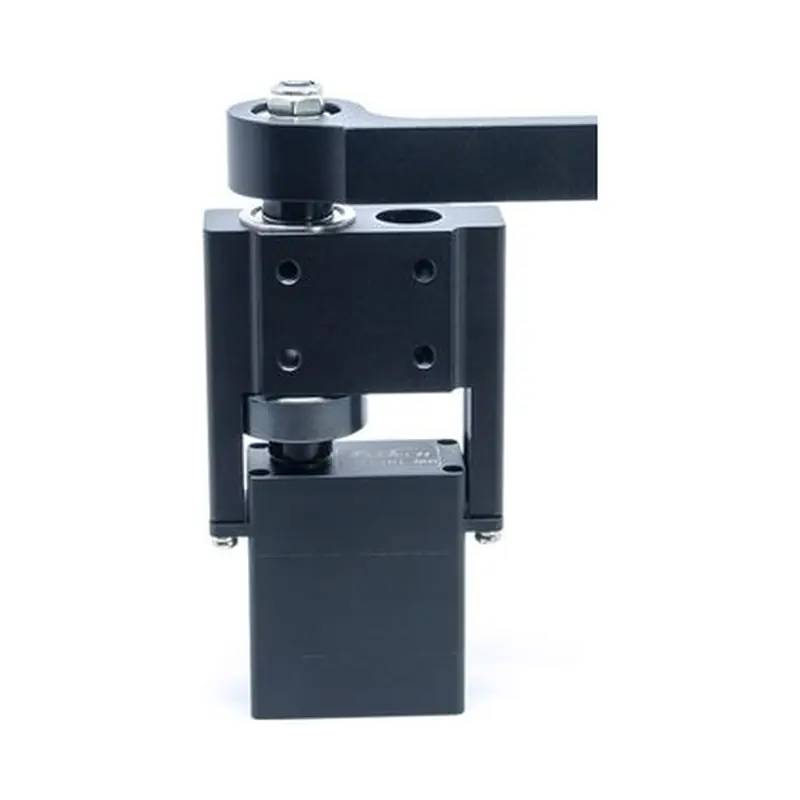

SM-24BL-C015

SMSRS-485

Input voltage

18–25.2 V

Stall torque

24 kg·cm@24V

No-load speed

110 rpm@24V

Model page

SM-260B-C001

SMSRS-485

Input voltage

18–25.2 V

Stall torque

260 kg·cm@24V

No-load speed

52 rpm@24V

Model page

SM-2912-C001

SMSRS-485

Input voltage

9–12.6 V

Stall torque

12 kg·cm@12V

No-load speed

109 rpm

Model page

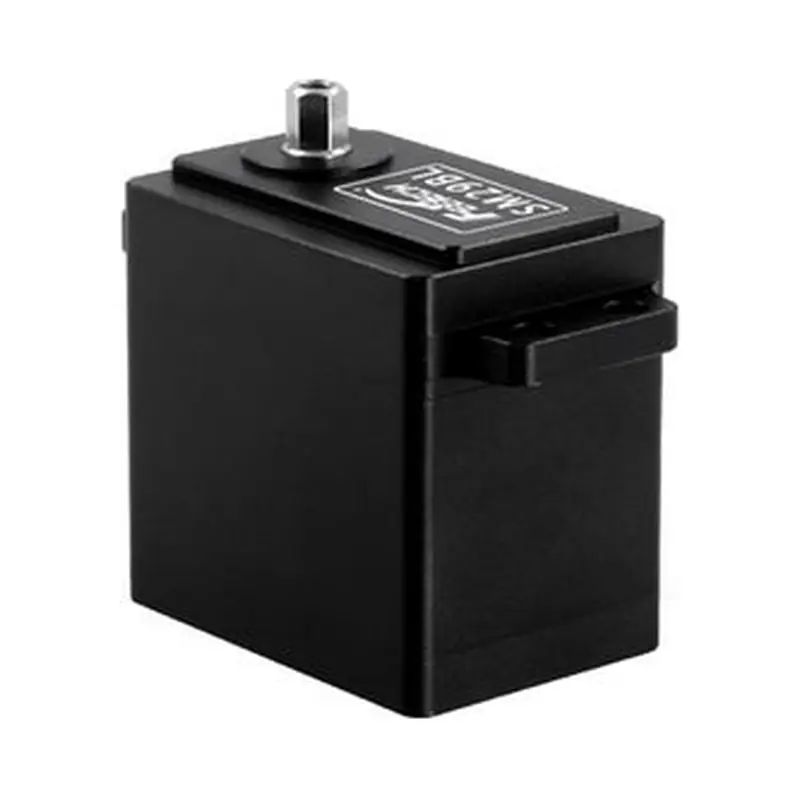

SM-2924-C001

SMSRS-485

Input voltage

18–25.2 V

Stall torque

12 kg·cm@24V

No-load speed

109 rpm

Model page

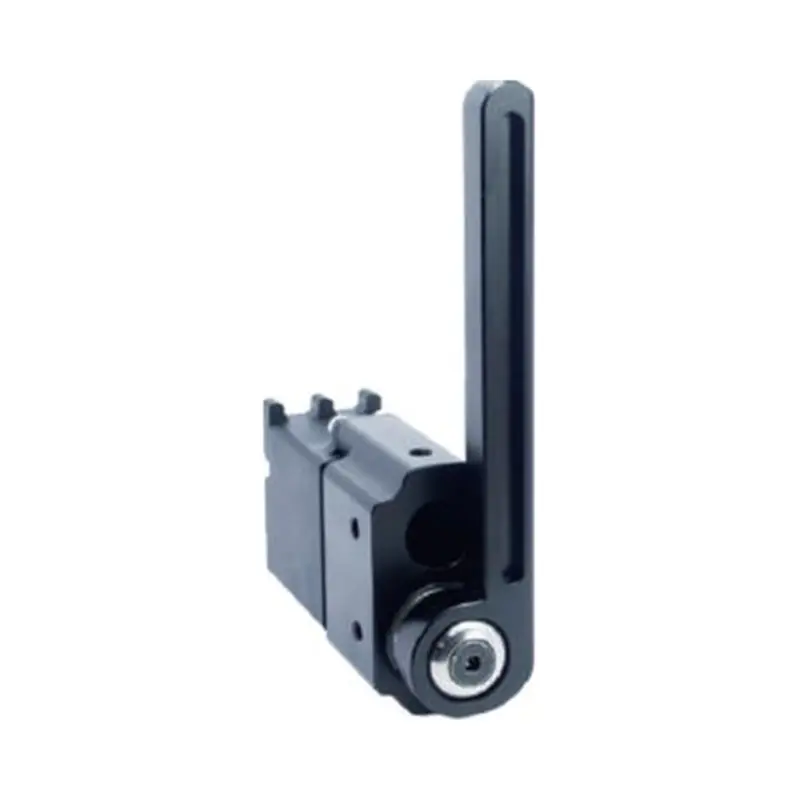

SM-2924-C012

SMSRS-485

Input voltage

18–25.2 V

Stall torque

20 kg·cm@24V

No-load speed

102 rpm@24V

Model page

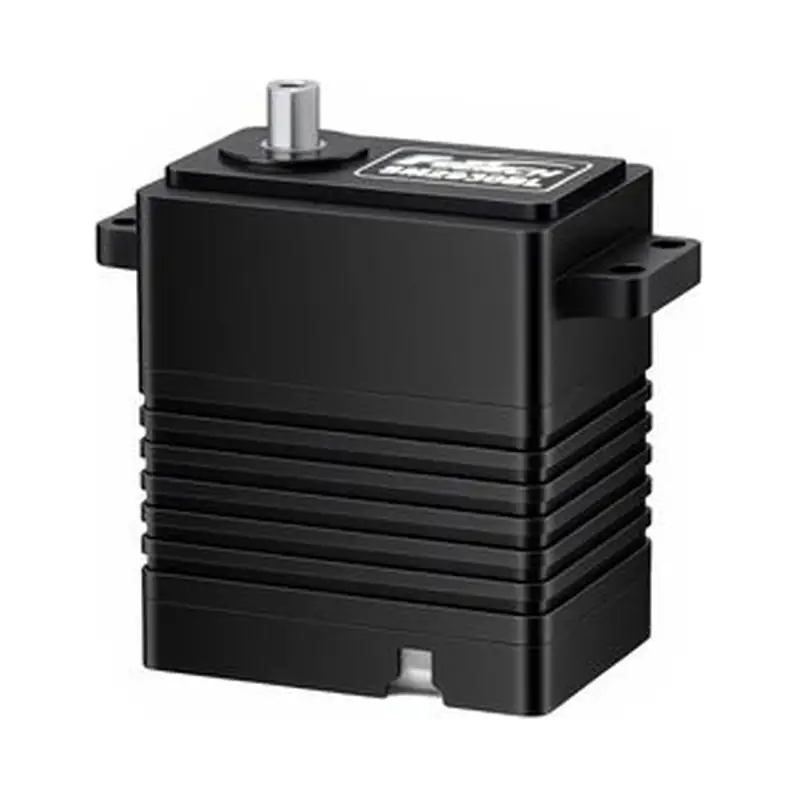

SM-2930-C001

SMSRS-485

Input voltage

18–25.2 V

Stall torque

30 kg·cm@24V

No-load speed

124 rpm@24V

Model page

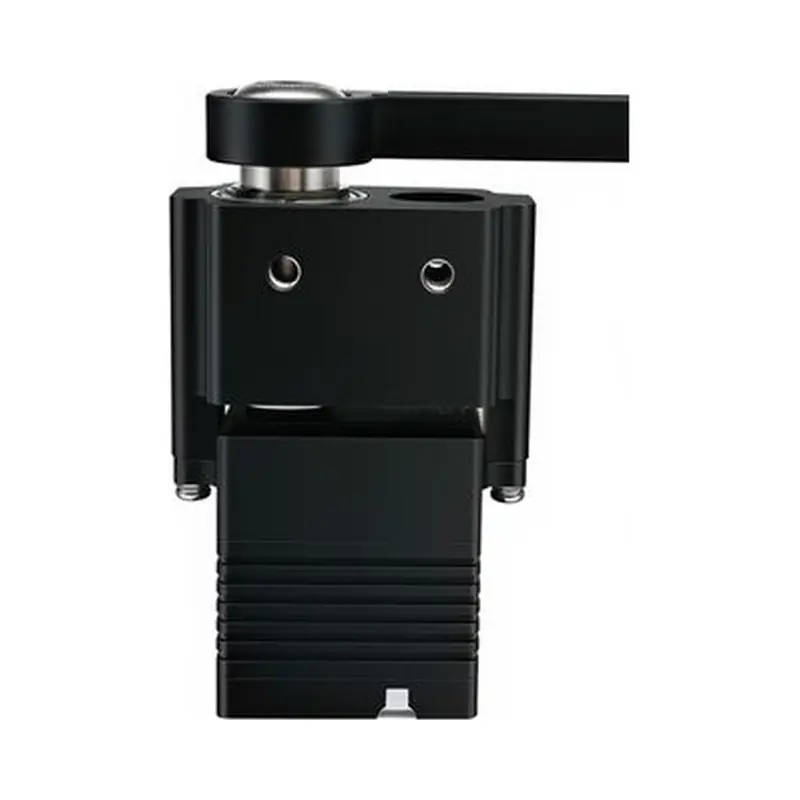

SM-2930-C002

SMSRS-485

Input voltage

16.8–25.2 V

Stall torque

30 kg·cm@24V

No-load speed

120 rpm@24 V

Model page

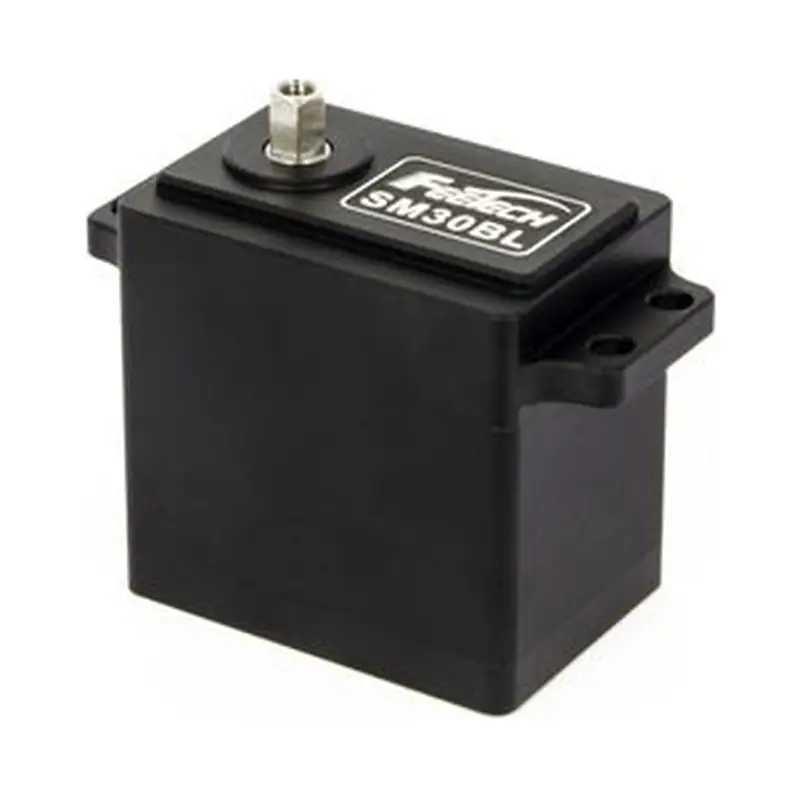

SM-30BL-C001

SMSRS-485

Input voltage

9–12.6 V

Stall torque

30 kg·cm@12V

No-load speed

73 rpm

Model page

SM-40BL-C001

SMSRS-485

Input voltage

9–12.6 V

Stall torque

40 kg·cm@12V

No-load speed

65 rpm

Model page

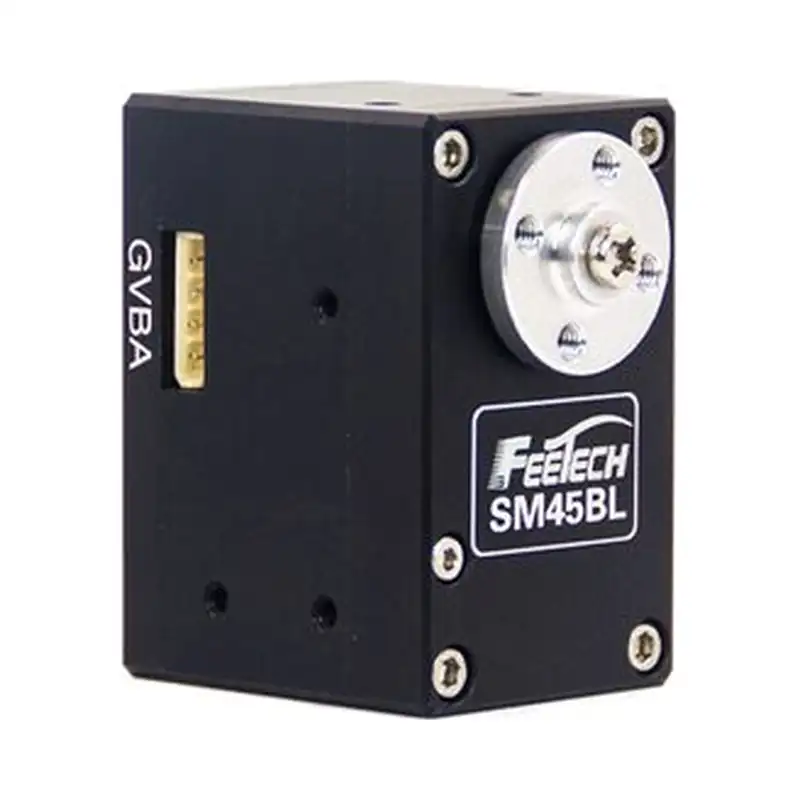

SM-45BL-C001

SMSRS-485

Input voltage

18–25.2 V

Stall torque

45 kg·cm@24V

No-load speed

70 rpm

Model page

SM-45BL-C002

SMSRS-485

Input voltage

24 V

Stall torque

45 kg·cm@24V

No-load speed

70 rpm

Model page

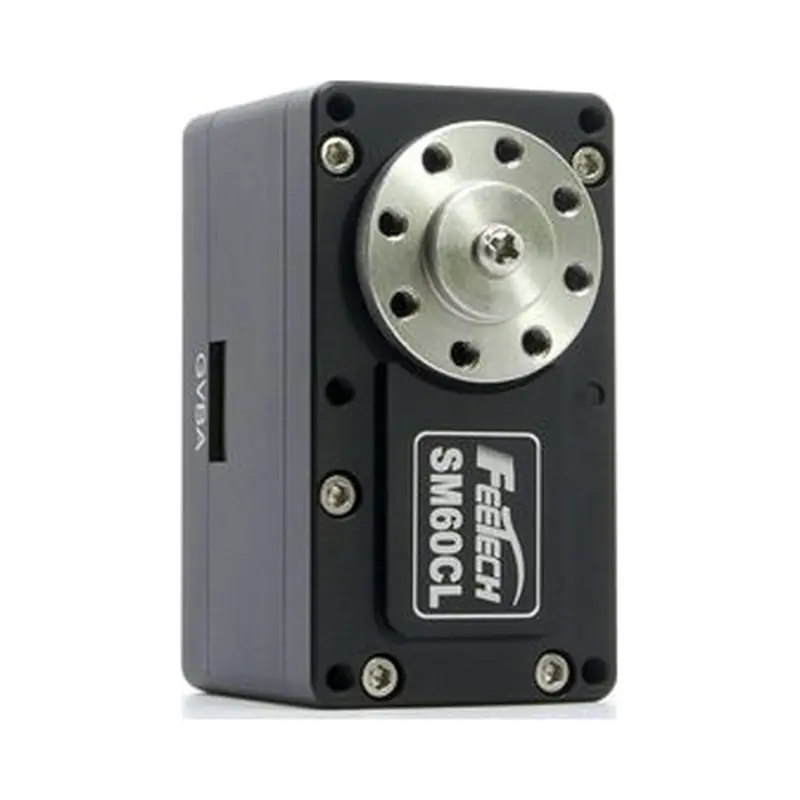

SM-60CL-C001

SMSRS-485

Input voltage

9–12.6 V

Stall torque

60 kg·cm@12V

No-load speed

35 rpm@12V

Model page

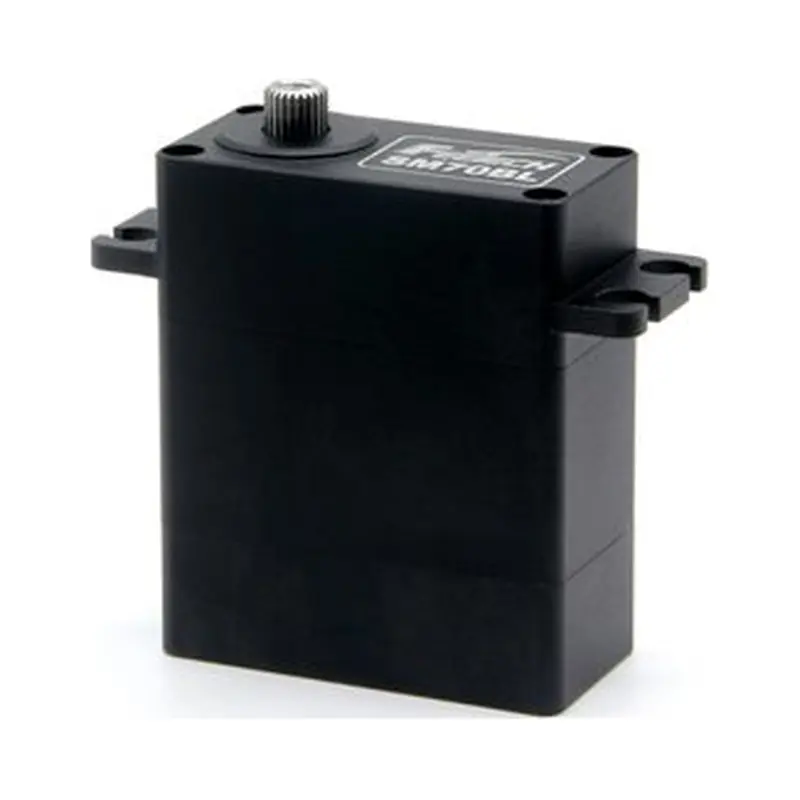

SM-70BL-C001

SMSRS-485

Input voltage

18–25.2 V

Stall torque

70 kg·cm@24V

No-load speed

78 rpm@24V

Model page

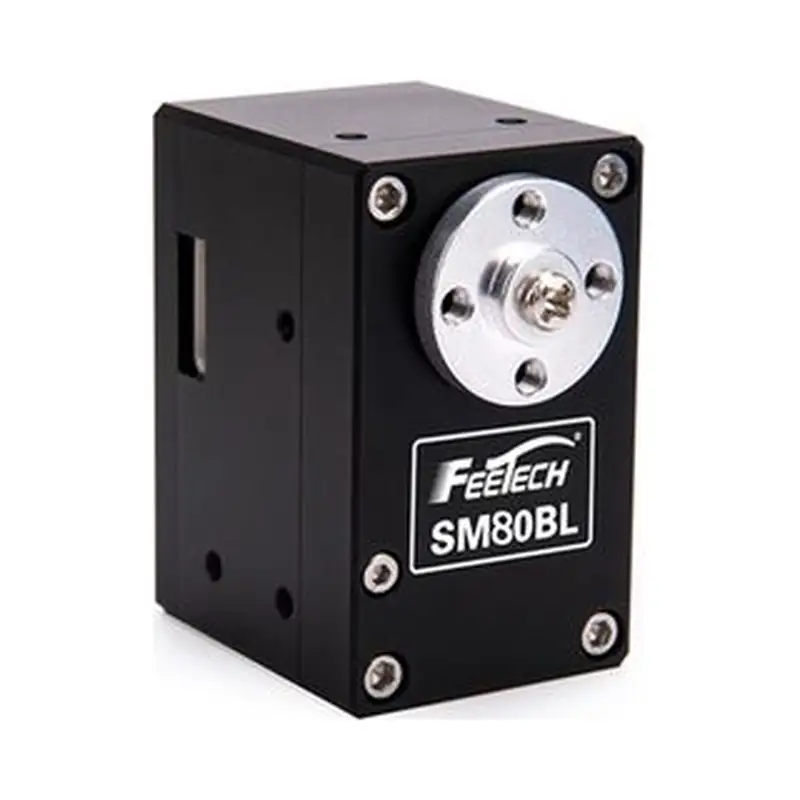

SM-80BL-C001

SMSRS-485

Input voltage

9–12.6 V

Stall torque

80 kg·cm@12V

No-load speed

62 rpm@12V

Model page

SM-80BL-C002

SMSRS-485

Input voltage

18–25.2 V

Stall torque

85 kg·cm@24V

No-load speed

70 rpm@24V

Model page

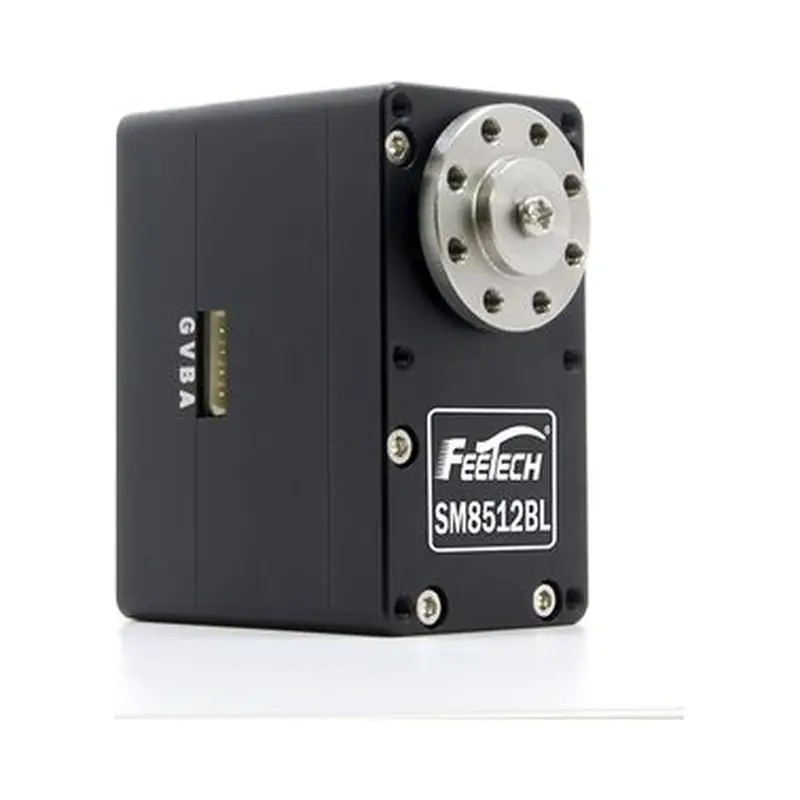

SM-8512-C001

SMSRS-485

Input voltage

9–12.6 V

Stall torque

85 kg·cm@12V

No-load speed

59.88 rpm@12V

Model page

SM-8524-C001

SMSRS-485

Input voltage

18–25.2 V

Stall torque

85 kg·cm@24V

No-load speed

64.94 rpm

Model page

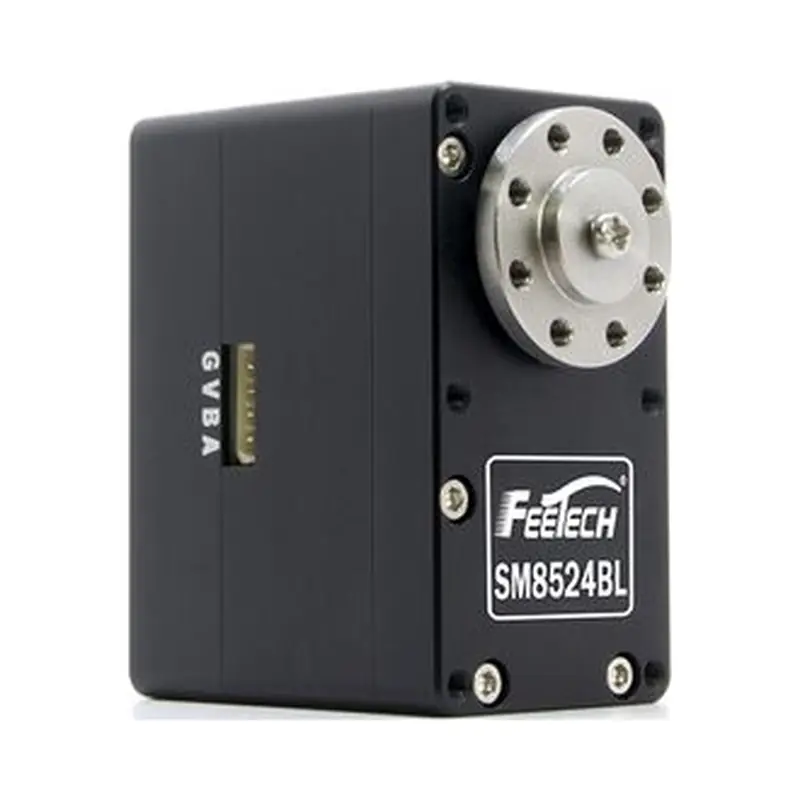

SM-8524-C002

SMSRS-485

Input voltage

9–24 V

Stall torque

85 kg·cm@24V

No-load speed

64.94 rpm

Model page

SM-85CL-C001

SMSRS-485

Input voltage

9–12.6 V

Stall torque

85 kg·cm@12V

No-load speed

37 rpm@12V

Model page
