ST series specifications¶

20 models. Compare primary specifications and open each model for integration details.

Product selector

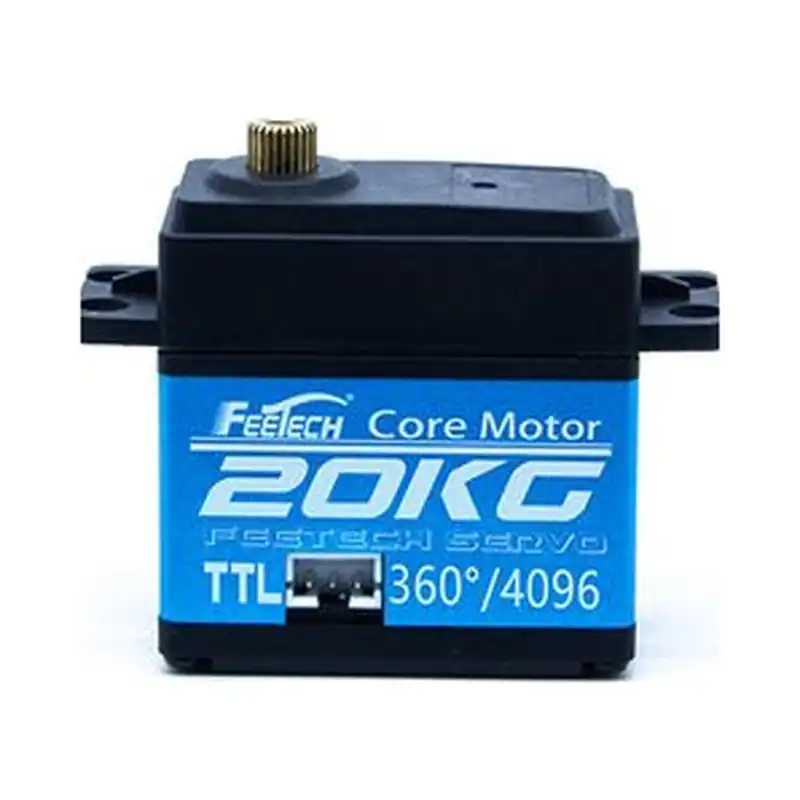

ST-2000-C001

ST-2000-C001

STSTTL

Input voltage: 5.5–9 V
Stall torque: 24.3 kg·cm@8.4V
No-load speed: 68 rpm@8.4 V

ST-3009-C001

ST-3009-C001

STSTTL

Input voltage: 6 V
Stall torque: 9 kg·cm@6V
No-load speed: 100 rpm@7.4V

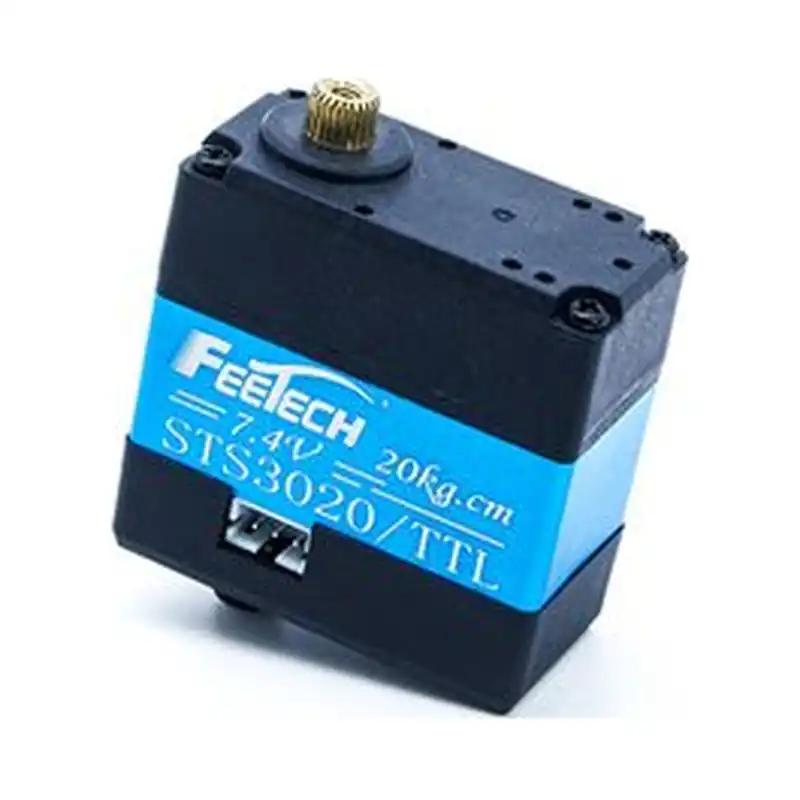

ST-3020-C001

ST-3020-C001

STSTTL

Input voltage: 7.4 V
Stall torque: 20 kg·cm@7.4V
No-load speed: 68 rpm@8.4V

ST-3025-C001

ST-3025-C001

STSTTL

Input voltage: 9–12.6 V
Stall torque: 20 kg·cm@12V
No-load speed: 170 rpm@12V

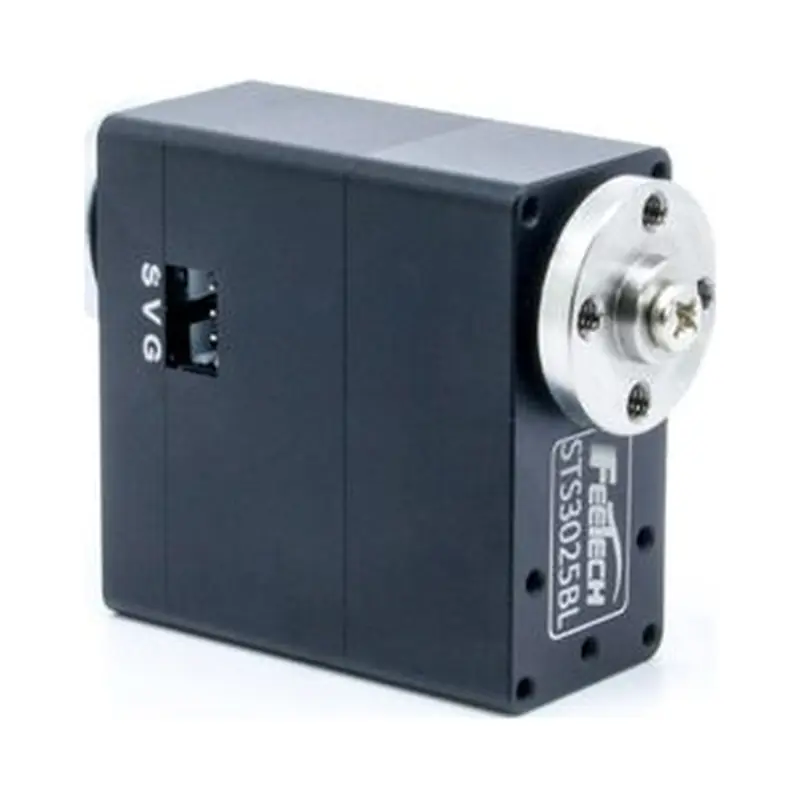

ST-3025-C002

ST-3025-C002

STSTTL

Input voltage: 9–12.6 V
Stall torque: 40 kg·cm@12V
No-load speed: 85 rpm@12V

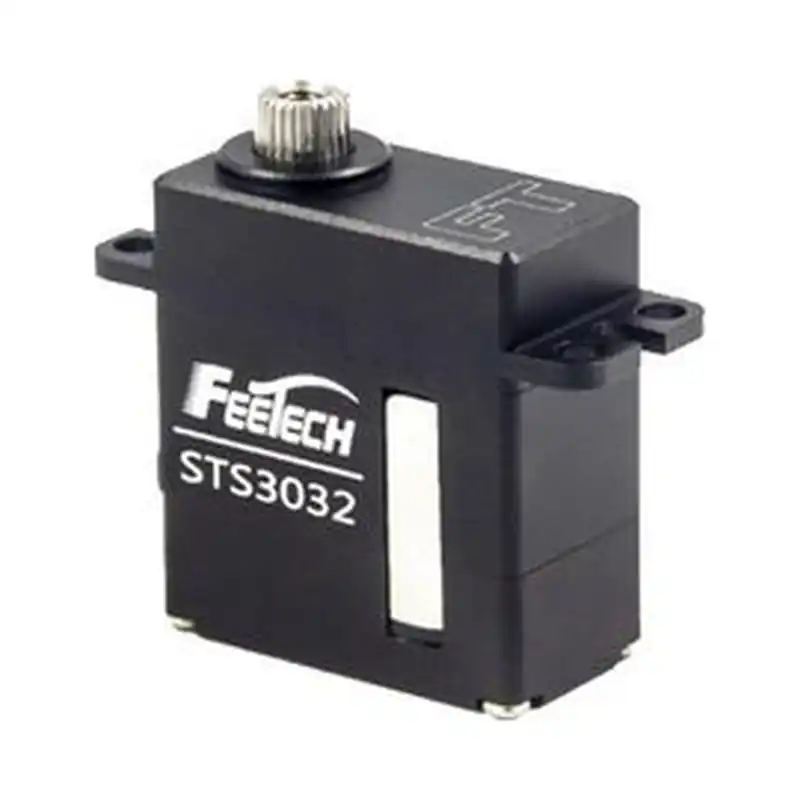

ST-3032-C001

ST-3032-C001

STSTTL

Input voltage: 6 V
Stall torque: 4.5 kg·cm@6V
No-load speed: 111.11 rpm@6V

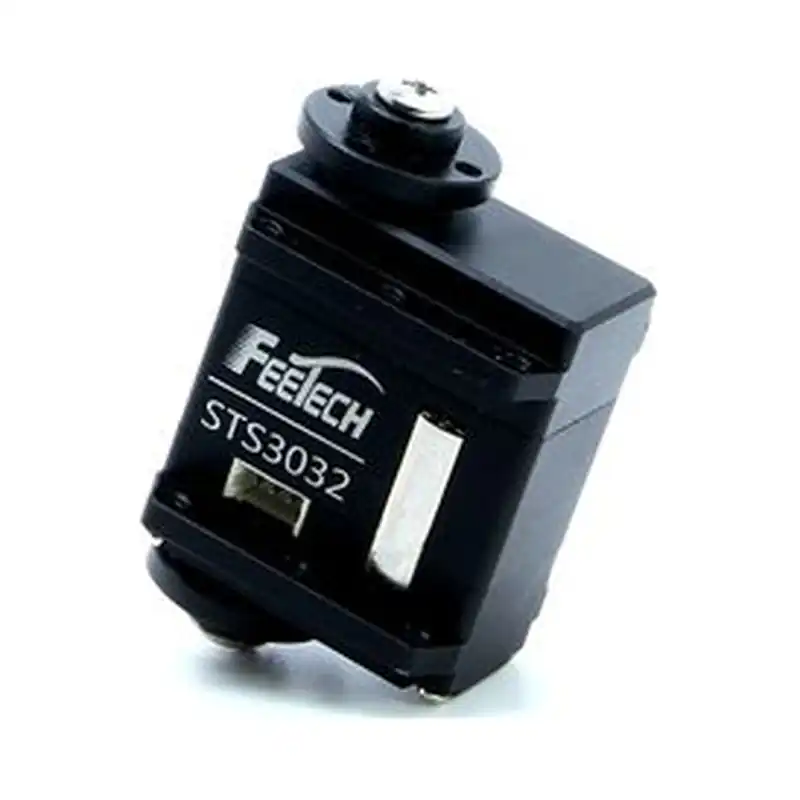

ST-3032-C036

ST-3032-C036

STSTTL

Input voltage: 6 V
Stall torque: 4.5 kg·cm@6V
No-load speed: 111.11 rpm@6V

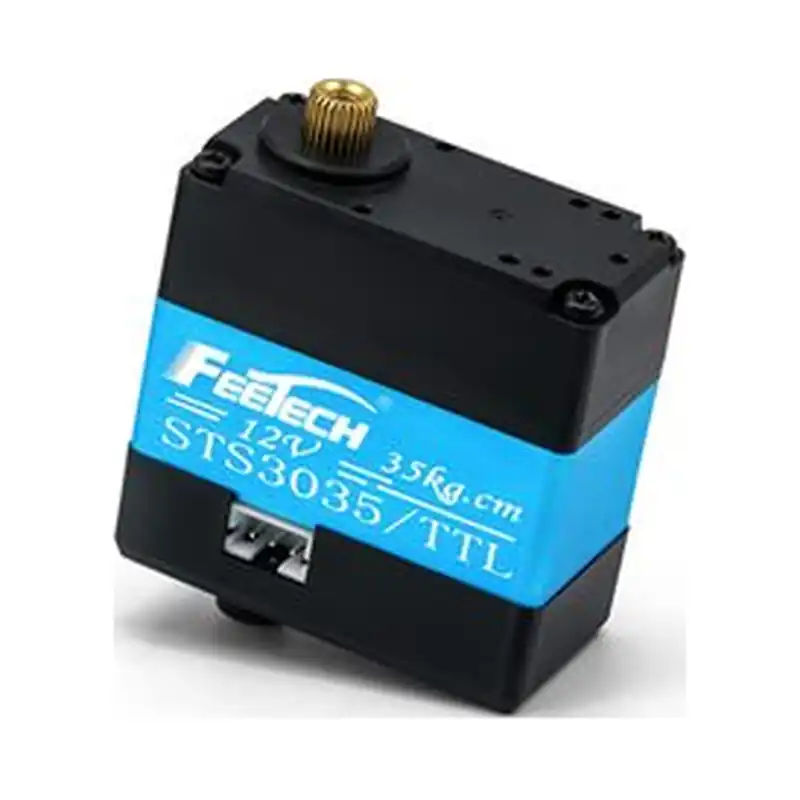

ST-3035-C001

ST-3035-C001

STSTTL

Input voltage: 9–12.6 V
Stall torque: 35 kg·cm@12V
No-load speed: 45 rpm@12V

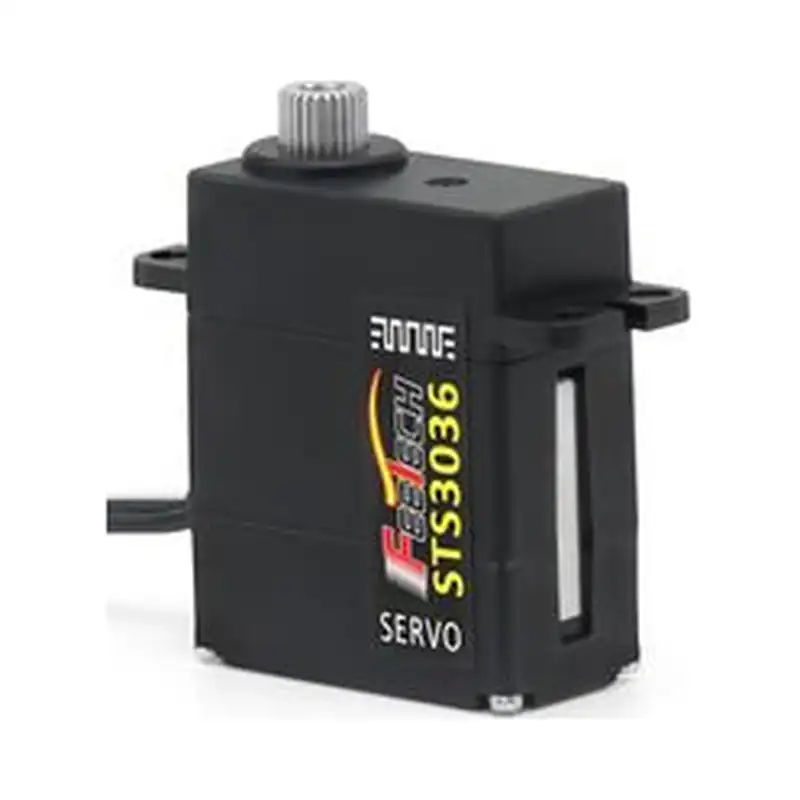

ST-3036-C001

ST-3036-C001

STSTTL

Input voltage: 6 V
Stall torque: 4.5 kg·cm@6V
No-load speed: 110 rpm@6V

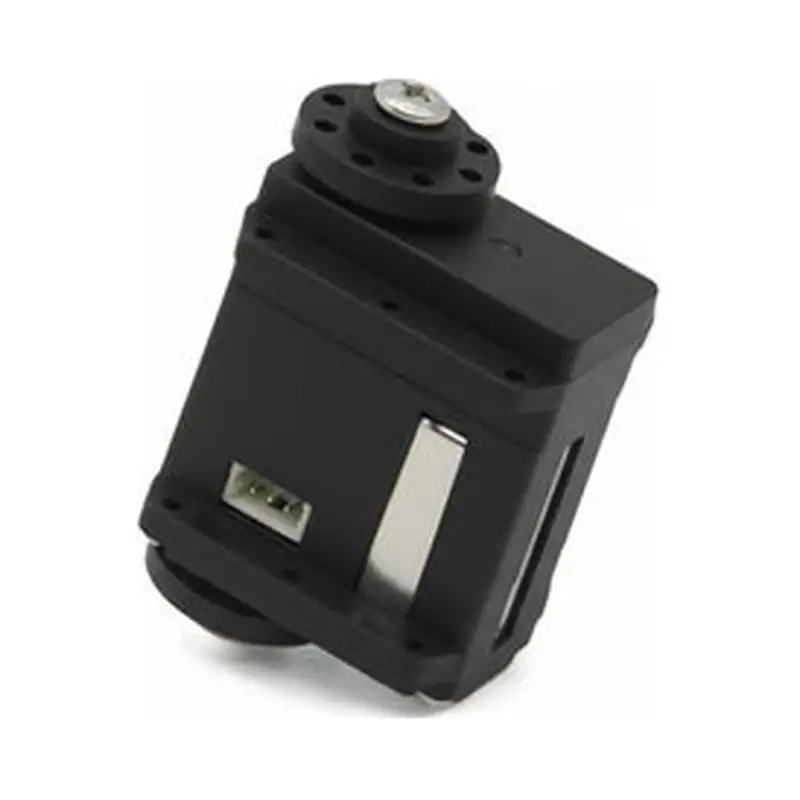

ST-3036-C002

ST-3036-C002

STSTTL

Input voltage: 6 V
Stall torque: 4.5 kg·cm@6V
No-load speed: 110 rpm@6V

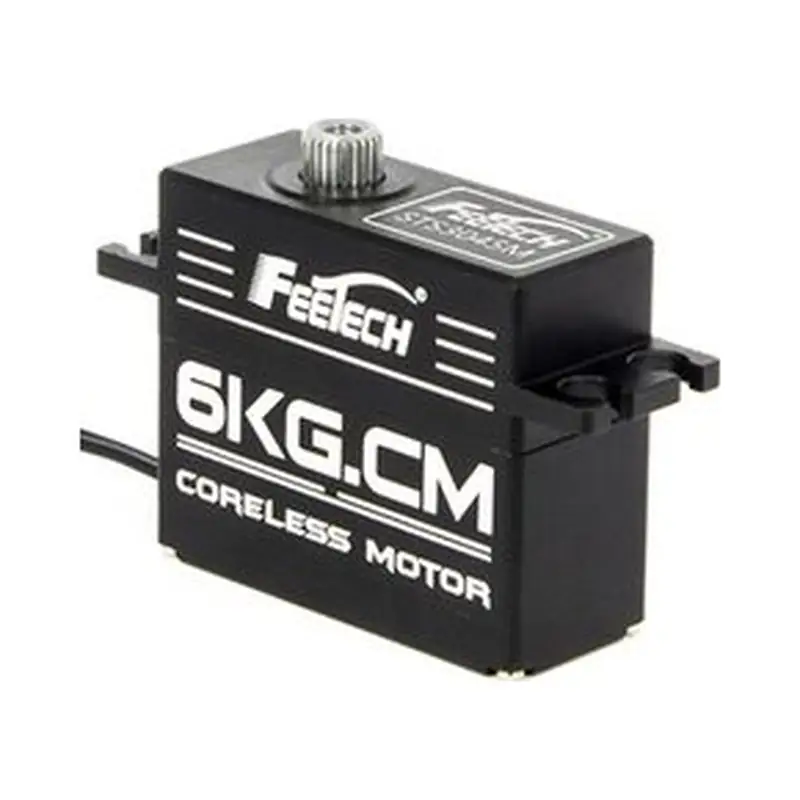

ST-3045-C001

ST-3045-C001

STSTTL

Input voltage: 6 V
Stall torque: 6 kg·cm@6V
No-load speed: 75.19 rpm@6V

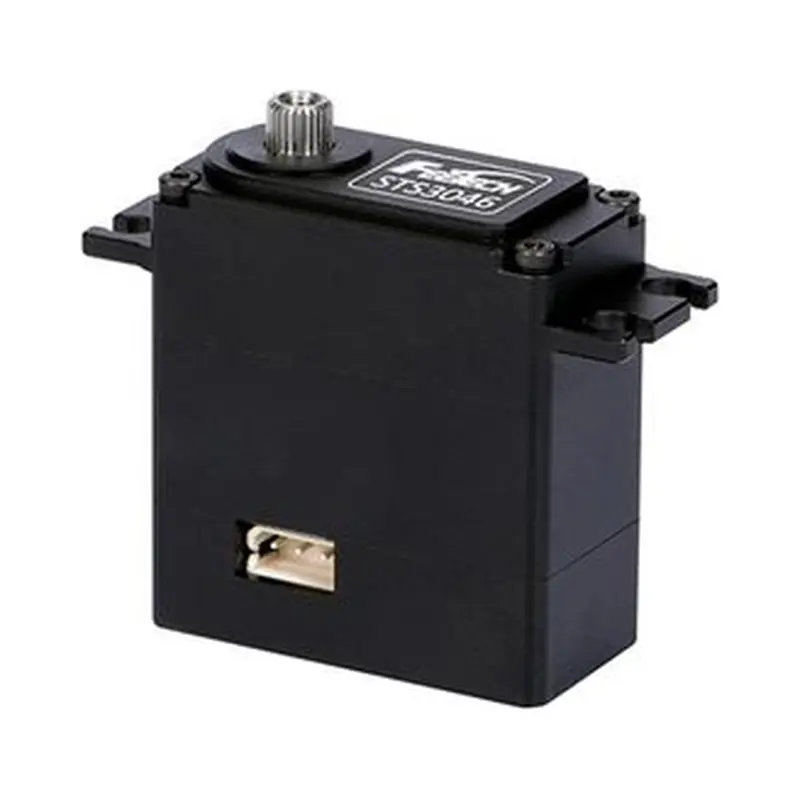

ST-3046-C001

ST-3046-C001

STSTTL

Input voltage: 7.4 V
Stall torque: 40 kg·cm@7.4V
No-load speed: 45.45 rpm@7.4V

ST-3095-C001

ST-3095-C001

STSTTL

Input voltage: 7.4 V
Stall torque: 95 kg·cm@7.4V
No-load speed: 40 rpm@8.4V

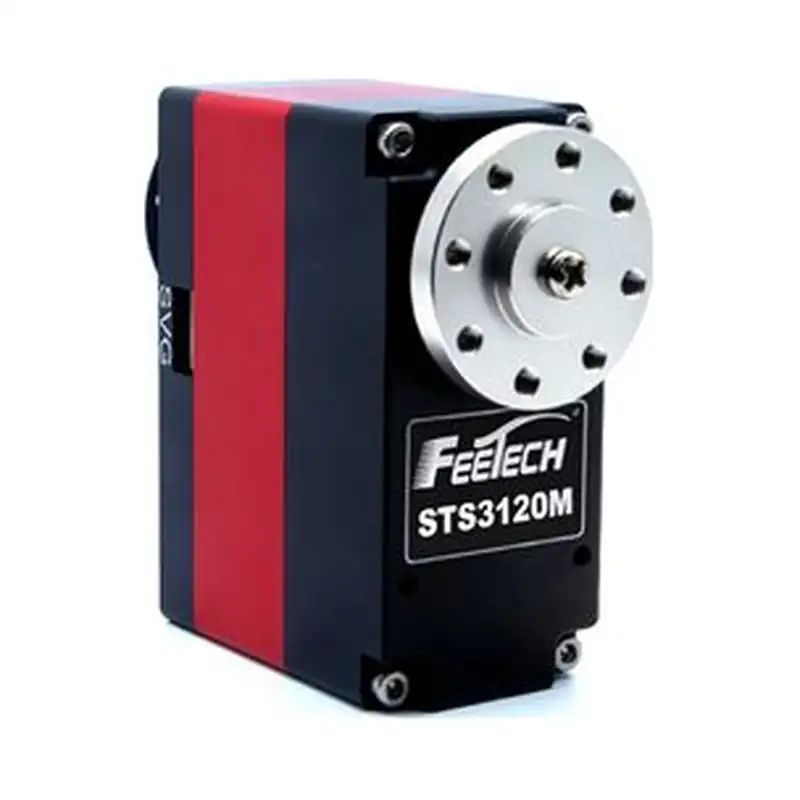

ST-3120-C001

ST-3120-C001

STSTTL

Input voltage: 9–12.6 V
Stall torque: 120 kg·cm@12V
No-load speed: 22 rpm@12V

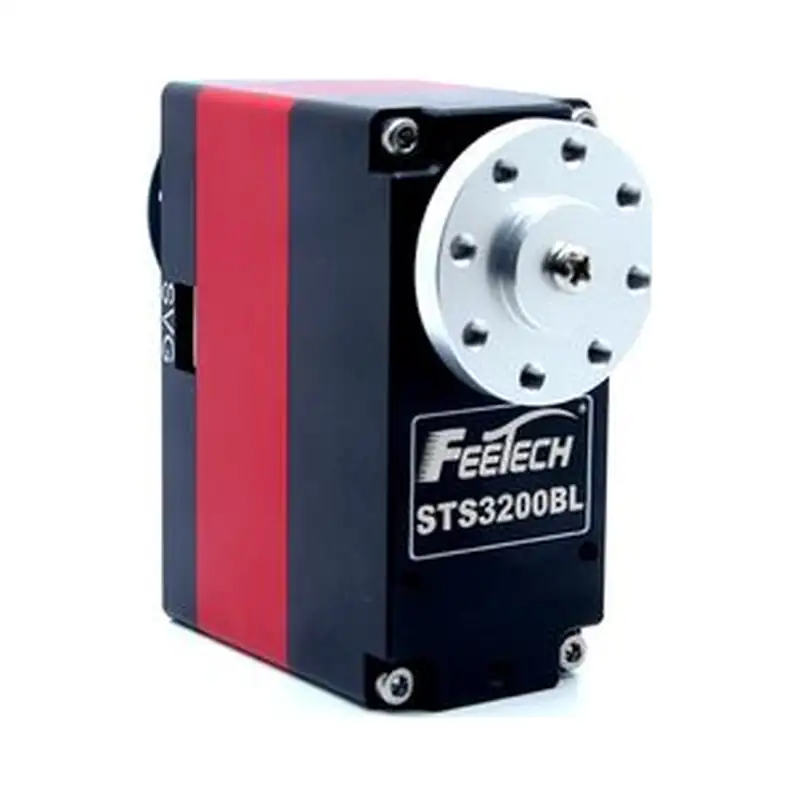

ST-3200-C001

ST-3200-C001

STSTTL

Input voltage: 9–12.6 V
Stall torque: 200 kg·cm@12V
No-load speed: 38 rpm@12V

ST-3215-C001

ST-3215-C001

STSTTL

Input voltage: 7.4 V
Stall torque: 19 kg·cm@7.4V
No-load speed: 42.02 rpm@6V

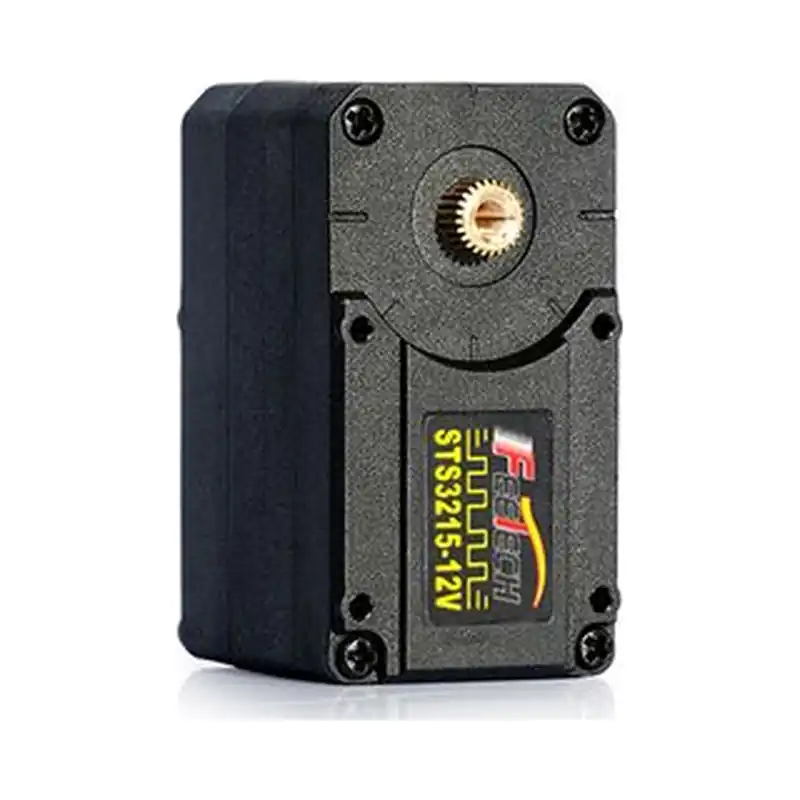

ST-3215-C018

ST-3215-C018

STSTTL

Input voltage: 9–12.6 V
Stall torque: 30 kg·cm@12V
No-load speed: 45.05 rpm@12V

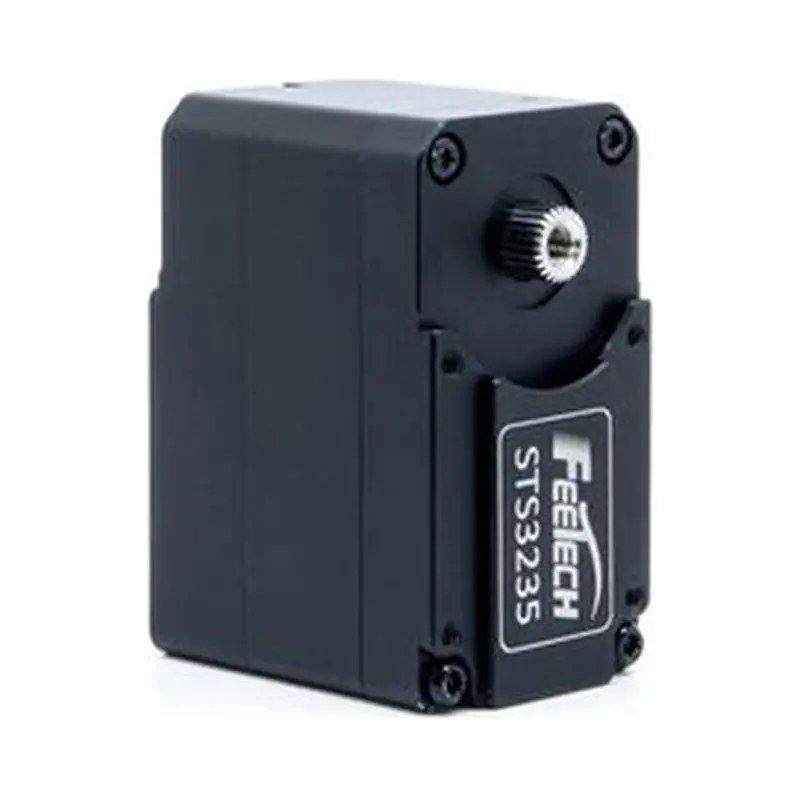

ST-3235-C001

ST-3235-C001

STSTTL

Input voltage: 9–12.6 V
Stall torque: 30 kg·cm@12V
No-load speed: 45.05 rpm@12V

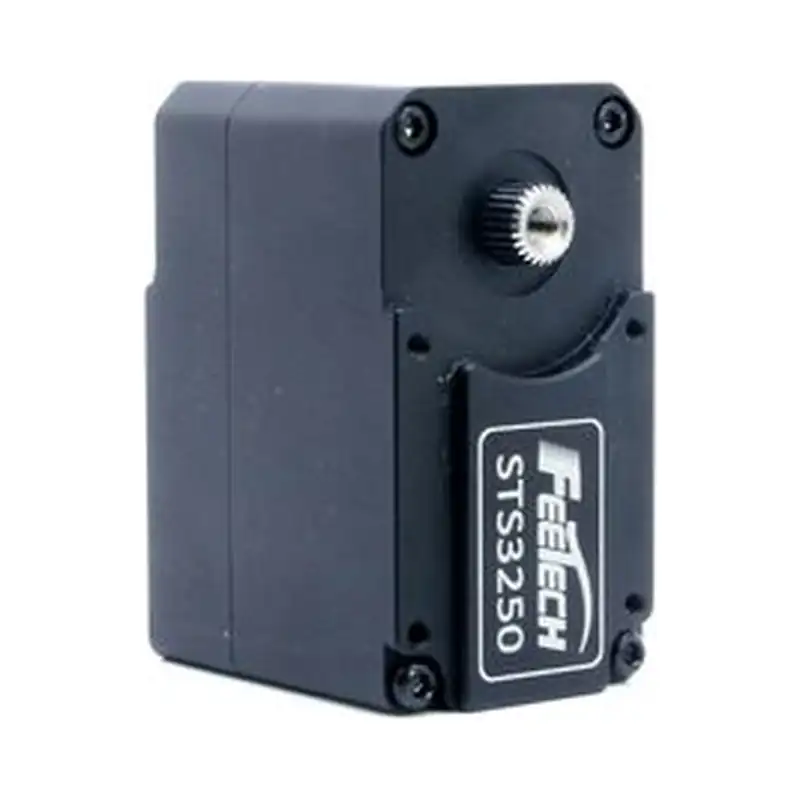

ST-3250-C001

ST-3250-C001

STSTTL

Input voltage: 9–12.6 V
Stall torque: 50 kg·cm@12V
No-load speed: 75.19 rpm@12V

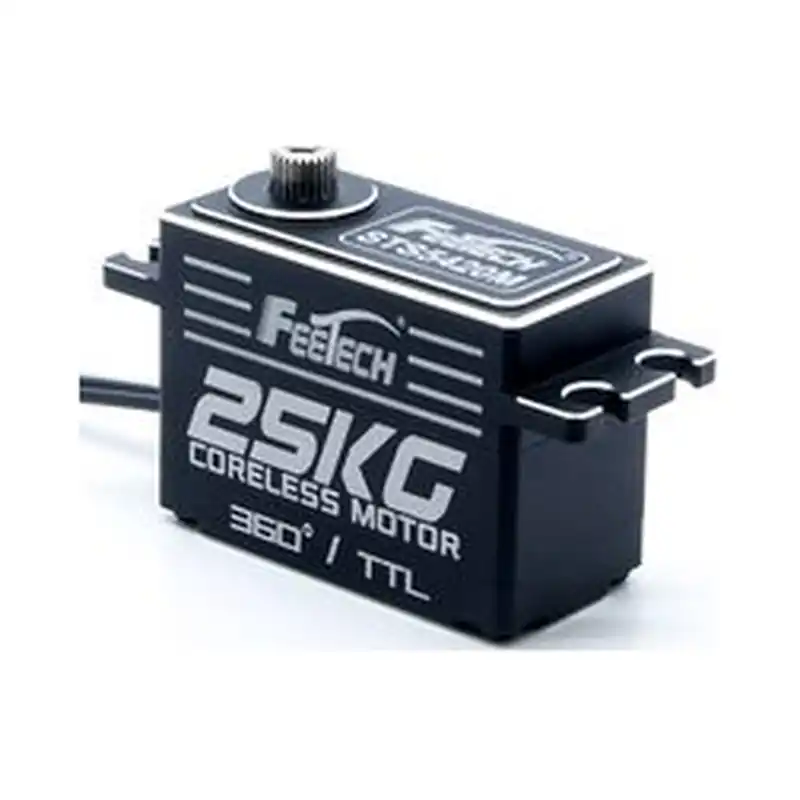

ST-5420-C001

ST-5420-C001

STSTTL

Input voltage: 7.4 V
Stall torque: 25kg·cm@7.4V
No-load speed: 90 rpm
