FT-9020-C001¶
Specifications transcribed from the supplied documentation for this exact model and suffix.
Start your integration¶
| Your task | Start here | What to check |
|---|---|---|
| Write control software | Software integration | Interface, application layer, read-first bring-up and validation record |
| Design a bracket or joint | Mechanical integration | Drawings, CAD, datum, output shaft and cable clearance |
| Collect engineering files | Resources and status | Available files and outstanding information |
Key specifications¶
| Parameter | Specification |
|---|---|
| --- | --- |
| Input voltage | 9–12 V |
| Stall torque | 20 kg·cm@12V |
| No-load speed | 0.105 s/60°（95 RPM）@12V |
| Travel / rotation | 200±5°（500→2500 μsec） |
| Control interface | PWM |
| Family | FT |
| Dimensions | 30 × 15 × 37.5 mm |
| Weight | 46.8 ± 2 g |
| Gears | Metal gears（aluminum case） |
| Motor | Brushless motor |
| Document revision | A/0（Official page captured 2026-10-02） |
Selection note
Stall torque is a short-duration limit, not continuous operating torque. Confirm power, shared ground, interface and mechanical clearance before enabling torque.
Official model specifications¶
FEETECH official product page · Checked 2026-10-02. The complete model on the page is FT-9020-C001.
| Parameter | Manufacturer specification |
|---|---|
| Model | FT-9020-C001 |
| Storage Temperature Range | -30℃～80℃ |
| Operating Temperature Range | -40℃～60℃ |
| Size | A: 30mm B: 15mm C: 37.5mm |
| Weight | 46.8±2 |
| Gear type | 钢 Steel |
| Limit angle | No limit |
| Bearing | 滚珠轴承 Ball bearings |
| Horn gear spline | 25T/5.95mm |
| Gear Ratio | 1/305 |
| Case | Aluminum |
| Connector wire | 26±1CM |
| Motor | Brushless Motor |
| Operating Voltage Range | 9V-12V |
| Idle current (at stopped) . | 36mA@12V |
| No load speed | 0.105sec/60° (95RPM)@12V |
| Runnig current(at no load) | 200mA@12V |
| Peak stall torque | 20kg.cm@12V |
| Rated torque | 6.4kg.cm@12V |
| Stall current | 400mA@12V |
| Command si gnal | Pulse width modification |
| Amplifier type | Digital Controller |
| Pulse width range | 500→2500 μsec |
| Stop position | 1500 μsec |
| Running degree | 200±5°(at 500→2500μsec) |
| Dead band width | ≤4 μsec |
| Rotating direction | 逆时针 Counterclockwise(在500→2500 μsec) |
Attachment checks: PDF content model not verified: FT-9020-C001.pdf
Other files linked by the manufacturer (model applicability unconfirmed):
Resources and document status¶
Local attachments are included in the model package; PDF specifications link to the manufacturer and are not bundled offline. Missing resources are not yet supplied; family guides do not verify model-specific settings.
| Resource | Status / file | Revision |
|---|---|---|
| Model datasheet | Not supplied | — |
| Connector and pinout | Not supplied | — |
| Model memory table / firmware notes | Not applicable | — |

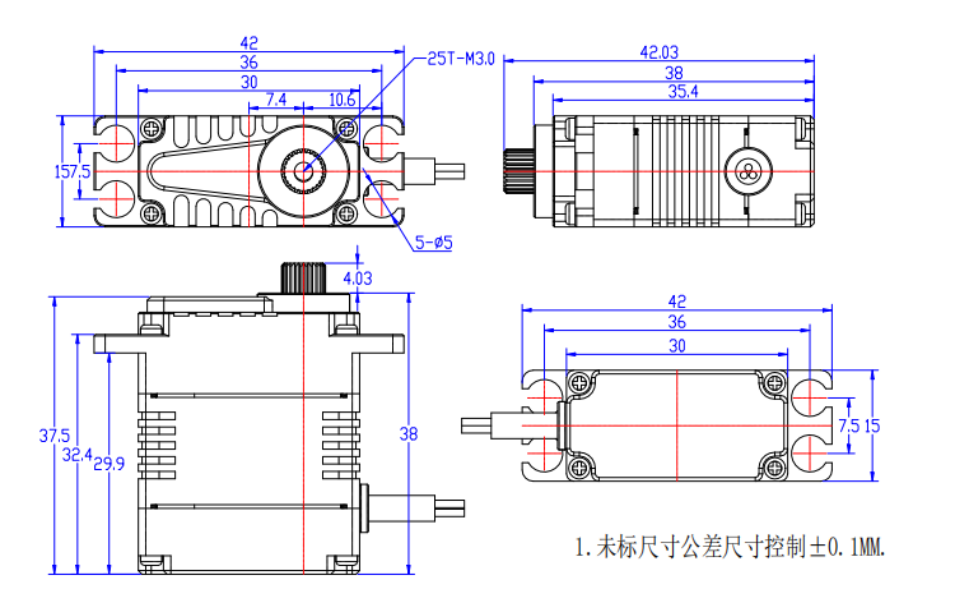

| 2D mounting drawing | drawing.webp | — |
