FS-90MG-C001¶
Use this page to compare the main specifications of FS-90MG-C001 and plan power, control and mechanical integration.
Start your integration¶
| Your task | Start here | What to check |
|---|---|---|
| Write control software | Software integration | Interface, application layer, read-first bring-up and validation record |
| Design a bracket or joint | Mechanical integration | Drawings, CAD, datum, output shaft and cable clearance |
| Collect engineering files | Resources and status | Available files and outstanding information |
Key specifications¶
| Item | Value |
|---|---|
| Input voltage | 6 V |
| Stall torque | 2.2 kg·cm@6V |
| Control interface | PWM |
| Product family | FS |
| Product model | FS90MG-C001 |
| Document revision | A/0 |
Selection note
Stall torque is a short-duration limit for product comparison, not a continuous operating point. Allow suitable margin for duty cycle, temperature, impact, acceleration and mechanism friction.
Selection and use¶
- Confirm the product label and document revision match this page.
- Confirm the permitted supply range from this model’s formal documentation before selecting a regulated supply; a single catalog voltage does not establish a range. Size current for simultaneous operation.
- Match the controller, wiring and PWM signal settings to the exact model documentation.
- Check mounting space, output shaft, travel and mechanical clearance before enabling torque.
For control signals and first tests, continue with this model’s software integration page. PWM models do not use serial-bus SDKs.
Official model specifications¶
FEETECH official product page · Checked 2026-10-02. The complete model on the page is FS-90MG-C001.
Claims requiring confirmation
voltageMin: website table gives 4.8, attached PDF gives 3.3; a new filter value is withheld pending revision confirmation.
| Parameter | Manufacturer specification |
|---|---|
| Model | FS-90MG-C001 |
| Storage Temperature Range | -30℃～80℃ |
| Operating Temperature Range | -1℃～70℃ |
| Size | A：22.5mm B：12.1mm C：26.7mm |
| Weight | 12.7± 1g |
| Gear type | Copper |
| Limit angle | 180degree |
| Bearing | NO Ball bearings |
| Horn gear spline | 21T |
| Horn type | Plastic,POM |
| Case | ABS |
| Connector wire | 250mm |
| Motor | Metal brush motor |
| Operating Voltage Range | 4.8-6V |
| Idle current(at stopped) | 5mA-6mA |
| No load speed | 0.07sec/60degr@6V |
| Runnig current(at no load) | 220 mA @6V |
| Peak stall torque | 2.2kg.cm@6V |
| Rated torque | 0.7kg.cm@6V |
| Stall current | 800mA@6V |
| Running degree | 180°(when 500～2500μsec) |
| Rotating direction | CW(when 1500～900 µsec) CCW(when 1500～2100 µsec) |
Additional facts from the attached datasheet¶
| Parameter | Specification | PDF page |
|---|---|---|
| 角度传感器 Angle Sansor | 类型Type / Carbon-Film Potentiometer | 4 |
| 齿轮虚位Back Lash | ≦2.0° | 4 |
| 摇臂虚位 The rocker phantom | 0° | 4 |
| 出力轴螺丝 The rocker screw | M2.5X4 | 4 |
| 两边角度差 Left&Right Travelling Angledeviation | ≤ 5° | 4 |
| 回中差 Centering Deviation | ≦2° | 4 |
| 信号周期 Signal Period | 20ms | 7 |
| 信号高电平电压 Signal high Voltage | 2V-5V | 7 |
| 信号低电平电压 Signal Low Voltage | 0.0V-0.45V | 7 |
Resources and document status¶
Local attachments are included in the model package; PDF specifications link to the manufacturer and are not bundled offline. Missing resources are not yet supplied; family guides do not verify model-specific settings.
| Resource | Status / file | Revision |
|---|---|---|
| Model datasheet | View on manufacturer website (online) | A/0 |
| Connector and pinout | Not supplied | — |
| Model memory table / firmware notes | Not applicable | — |

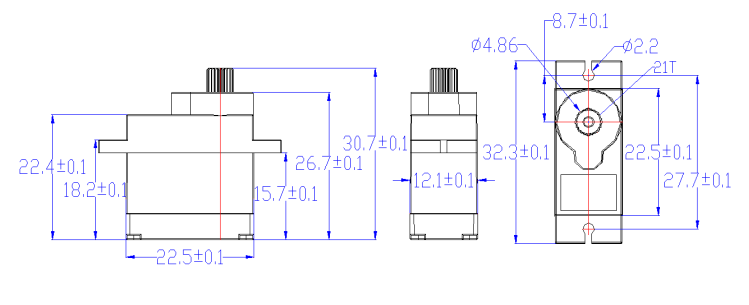

| 2D mounting drawing | drawing.webp | — |
