FS-5109-C001¶
Specifications transcribed from the supplied documentation for this exact model and suffix.
Start your integration¶
| Your task | Start here | What to check |
|---|---|---|
| Write control software | Software integration | Interface, application layer, read-first bring-up and validation record |
| Design a bracket or joint | Mechanical integration | Drawings, CAD, datum, output shaft and cable clearance |
| Collect engineering files | Resources and status | Available files and outstanding information |
Key specifications¶
| Parameter | Specification |
|---|---|
| --- | --- |
| Input voltage | 4–8.4 V |
| Stall torque | 10.2 kg·cm@6V |
| No-load speed | 50 RPM@6V（Continuous rotation） |
| Travel / rotation | 360° Continuous rotation（1000→2000 μsec speed control） |
| Control interface | PWM |
| Family | FS |
| Dimensions | 40.1 × 20.1 × 38.9 mm |
| Weight | 60.6 ± 1 g |
| Gears | Copper gears（plastic case） |
| Motor | Iron-core motor |
| Document revision | A/0（Official page captured 2026-10-02） |
Selection note
Stall torque is a short-duration limit, not continuous operating torque. Confirm power, shared ground, interface and mechanical clearance before enabling torque.
Official model specifications¶
FEETECH official product page · Checked 2026-10-02. The complete model on the page is FS-5109-C001.
| Parameter | Manufacturer specification |
|---|---|
| Model | FS-5109-C001 |
| Storage Temperature Range | -30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ |
| Size | A：40.1mm B：20.1mm C:38.9mm |
| Weight | 60.6± 1g |
| Gear type | 铜 Copper |
| Limit angle | No Limit |
| Bearing | 滚珠轴承 Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Horn type | Plastic,POM |
| Case | PA+Fiberglass |
| Connector wire | 30CM |
| Motor | Core Motor |
| Operating Voltage Range | 4-8.4V |
| Idle current (at stopped) . | 6mA@6V |
| No load speed | 50RPM@6V |
| Runnig current(at no load) | 150mA@6V |
| Peak stall torque | 10.2kg.cm@6V |
| Rated torque | 3.4kg.cm@6V |
| Stall current | 1.7A@6V |
| Command si gnal | Pulse width modification |
| Amplifier type | Digital comparator |
| Pulse width range | 1000~2000usec |
| Stop position | 1500 μsec |
| Running degree | 360°Continuous rotation (at 1000→2000μsec) |
| Dead band width | ≤65 μsec |
| Rotating direction | 逆时针 Counterclockwise(在1500 →2000 μsec) |
Attachment checks: Different model PDF: FS5109R.pdf
Other files linked by the manufacturer (model applicability unconfirmed):
Resources and document status¶
Local attachments are included in the model package; PDF specifications link to the manufacturer and are not bundled offline. Missing resources are not yet supplied; family guides do not verify model-specific settings.
| Resource | Status / file | Revision |
|---|---|---|
| Model datasheet | Not supplied | — |
| Connector and pinout | Not supplied | — |
| Model memory table / firmware notes | Not applicable | — |

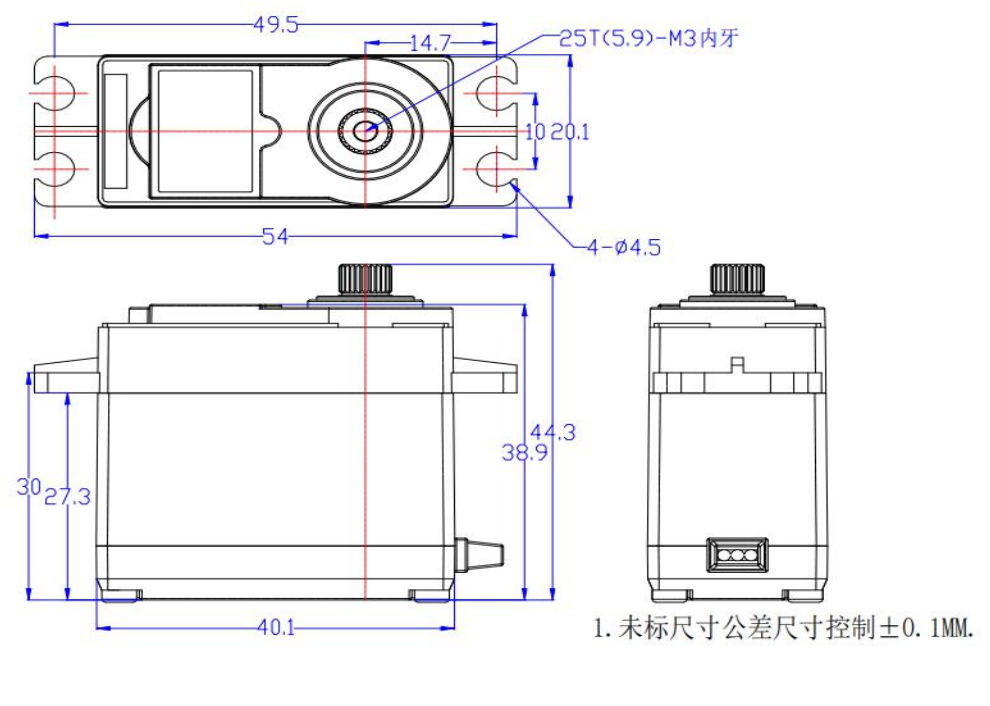

| 2D mounting drawing | drawing.webp | — |
| STEP / 3D model | Not supplied | — |
| Model-tested example | Not supplied | — |
| Raw test data | Not supplied | — |
| Test record and conditions | Not supplied | — |
Package manifest · Request missing resources
For an offline ZIP with both languages and available attachments, see product-package export.
Request resources or report an issue¶
Use your existing FEETECH technical-support contact and include the full label/model suffix, firmware version (if known), and the document revision you are using.
- Software: controller/OS, SDK version or commit, adapter/interface, supply voltage, confirmed ID/baud rate (bus models only), minimal reproduction and logs.
- Mechanics: drawing/CAD revision, marked dimensions, required travel, horn/bracket, load and lever arm, duty cycle, and the point of interference.
- Missing files: name the exact item in the resource table (for example, this model's STEP and a dimensioned mounting drawing).
This package currently provides a specification summary and integration checklists. File availability does not imply that your firmware, load case or assembly has been validated.
